PVC Clear Y Strainer | Hayward YSH Series
40%+ Cv Improvement | Robust PVC Construction
Model:
YSH Series in PVC Clear
Application:
Liquid Filtration
The Hayward YSH Series Y-Strainer in PVC Clear is designed to provide reliable pipeline protection while remaining easy to install, inspect, and service. Permanent body markings and clearly moulded flow direction arrows assist with correct installation and help reduce the risk of incorrect orientation in the pipeline.
Available with either True Union or Integral End Connections, the YSH Series provides installation flexibility to suit a wide range of thermoplastic piping systems. The True Union design allows the strainer to be removed from the line for servicing or replacement with minimal disruption, while Integral End Connections offer a compact and robust option for more permanent installations.
Manufactured for dependable performance in demanding fluid handling applications, the YSH Series is also backed by Hayward’s Global 3 Year Warranty, providing additional confidence in product quality, service life, and long-term system reliability.
Technical Overview
Designed for ease of installation and service, the YSH Series features permanent body markings, flow direction arrows, and is backed by Hayward's Global 3 Year Warranty. The YSH Series is available in either True Union or Integral End Connections.

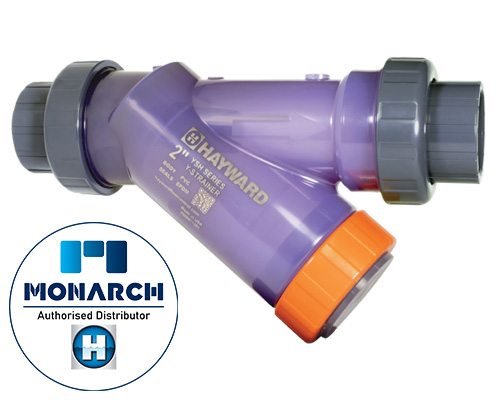

- True Union Ends: Available in sizes 1/2" – 2" / DN15 – DN50 with IPS, DIN/EN or JIS Socket, Threaded or Flanged End connections.

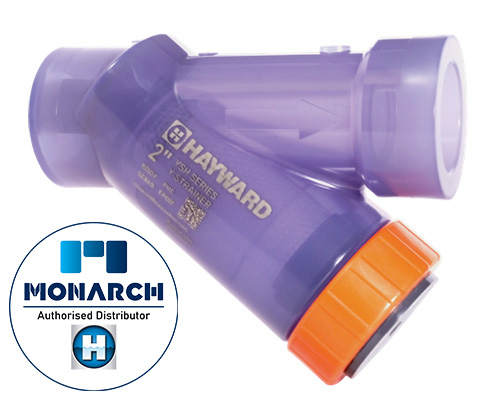

- Integral Ends: Available in sizes 1/2" – 2" with IPS Socket or Threaded End connections.
- Pressure Rating: 150 PSI / 10 bar @ 70°F / 21°C (Non‑Shock)
- Screens: 1/32" (800 micron) thermoplastic standard. Options: Stainless Steel, Monel, Hastelloy, Titanium
- Manufacturing: Made in the USA
- Options: Additional options include blow out drain ports and drilled/tapped boss access points for pressure gauges on sizes 1" and larger.
| Feature | PVC | PVC Clear | CPVC |
| ASTM Cell Class | 12454 | 12454 | 23447 |
| O-Ring Seals | FPM or EPDM | FPM or EPDM | FPM or EPDM |
| Barrel Nut Color | Orange | Orange | Black |
| Max Temp | 140°F (60°C) | 140°F (60°C) | 190°F (88°C) |
Maximum Flow Rate
The maximum recommended fluid velocity through this Hayward Product is five feet per second (8 ft/s), relative to the connection size fitted. Higher fluid velocity can result in damage due to the water hammer effect.
1/2" connections
1,390 lt/hr (approx. 8 ft/s)
3/4" connections
2,530 lt/hr (approx. 8 ft/s)
1" connections
4,150 lt/hr (approx. 8 ft/s)
1-1/4" connections
6,900 lt/hr (approx. 8 ft/s)
1-1/2" connections
10,110 lt/hr (approx. 8 ft/s)
2" connections
16,830 lt/hr (approx. 8 ft/s)
Operating Temperature vs Pressure Chart
The effect of temperature on plastic piping systems must be considered when the systems are initially designed. The pressure rating of plastic systems must be reduced with increasing temperature.
Maximum operating pressure is dependent upon material selection as well as operating temperature.
Before installing any product, consult the product literature for Pressure vs. Temperature curves to determine any operating pressure or temperature limitations.
The below codes are for Socket, NPT Threaded and ANSI Flanges
OPTIONS AND ACCESSORIES
- BSP Connections
- Flanges (ANSI, Table)
- Blow out drain port – drill and tap
- Stainless steel and alloy perf and mesh screens
- Drilled & tapped boss access points for pressure gauges for sizes 1" and larger
- Other O-Ring materials available
| Code | Description |
| YSH0050ASTE0000 | YSH Series 1/2" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0050ASTE0100 | YSH Series 1/2" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0050ASTV0000 | YSH Series 1/2" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0050ASTV0100 | YSH Series 1/2" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0075ASTE0000 | YSH Series 3/4" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0075ASTE0100 | YSH Series 3/4" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0075ASTV0000 | YSH Series 3/4" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0075ASTV0100 | YSH Series 3/4" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0100ASTE0000 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0100ASTE0100 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0100ASTE0200 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/8" Perf screen |
| YSH0100ASTE0300 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 3/16" Perf screen |
| YSH0100ASTV0000 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0100ASTV0100 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0100ASTV0200 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/8" Perf screen |
| YSH0100ASTV0300 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 3/16" Perf screen |
| YSH0100AUFE0000 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 1/32" Perf screen |
| YSH0100AUFE0100 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 1/16" Perf screen |
| YSH0100AUFE0200 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 1/8" Perf screen |
| YSH0100AUFE0300 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 3/16" Perf screen |
| YSH0100AUFV0000 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 1/32" Perf screen |
| YSH0100AUFV0100 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 1/16" Perf screen |
| YSH0100AUFV0200 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 1/8" Perf screen |
| YSH0100AUFV0300 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 3/16" Perf screen |
| YSH0125ASTE0000 | YSH Series 1-1/4" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0125ASTE0100 | YSH Series 1-1/4" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0125ASTE0200 | YSH Series 1-1/4" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/8" Perf screen |
| YSH0125ASTE0300 | YSH Series 1-1/4" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 3/16" Perf screen |
| YSH0125ASTV0000 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0125ASTV0100 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0125ASTV0200 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/8" Perf screen |
| YSH0125ASTV0300 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 3/16" Perf screen |
| YSH0150ASTE0000 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0150ASTE0100 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0150ASTE0200 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/8" Perf screen |
| YSH0150ASTE0300 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 3/16" Perf screen |
| YSH0150ASTV0000 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0150ASTV0100 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0150ASTV0200 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/8" Perf screen |
| YSH0150ASTV0300 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 3/16" Perf screen |
| YSH0150AUFE0000 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 1/32" Perf screen |
| YSH0150AUFE0100 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 1/16" Perf screen |
| YSH0150AUFE0200 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 1/8" Perf screen |
| YSH0150AUFE0300 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 3/16" Perf screen |
| YSH0150AUFV0000 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 1/32" Perf screen |
| YSH0150AUFV0100 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 1/16" Perf screen |
| YSH0150AUFV0200 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 1/8" Perf screen |
| YSH0150AUFV0300 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 3/16" Perf screen |
| YSH0200ASTE0000 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0200ASTE0100 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0200ASTE0200 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 1/8" Perf screen |
| YSH0200ASTE0300 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; TU Socket / Threaded Ends, 3/16" Perf screen |
| YSH0200ASTV0000 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/32" Perf screen |
| YSH0200ASTV0100 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/16" Perf screen |
| YSH0200ASTV0200 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 1/8" Perf screen |
| YSH0200ASTV0300 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; TU Socket / Threaded Ends, 3/16" Perf screen |
| YSH0200AUFE0000 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 1/32" Perf screen |
| YSH0200AUFE0100 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 1/16" Perf screen |
| YSH0200AUFE0200 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 1/8" Perf screen |
| YSH0200AUFE0300 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; TU FlangedEnds, 3/16" Perf screen |
| YSH0200AUFV0000 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 1/32" Perf screen |
| YSH0200AUFV0100 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 1/16" Perf screen |
| YSH0200AUFV0200 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 1/8" Perf screen |
| YSH0200AUFV0300 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; TU FlangedEnds, 3/16" Perf screen |
The below codes are for Socket and NPT Threaded.
OPTIONS AND ACCESSORIES
- Flanges (ANSI, Table)
- Blow out drain port – drill and tap
- Stainless steel and alloy perf and mesh screens
- Drilled & tapped boss access points for pressure gauges for sizes 1" and larger
- Other O-Ring materials available
| Code | Description |
| YSH0050A0SE0000 | YSH Series 1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0050A0SE0100 | YSH Series 1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0050A0SV0000 | YSH Series 1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0050A0SV0100 | YSH Series 1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0050A0TE0000 | YSH Series 1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0050A0TE0100 | YSH Series 1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0050A0TV0000 | YSH Series 1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0050A0TV0100 | YSH Series 1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0075A0SE0000 | YSH Series 3/4" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0075A0SE0100 | YSH Series 3/4" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0075A0SV0000 | YSH Series 3/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0075A0SV0100 | YSH Series 3/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0075A0TE0000 | YSH Series 3/4" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0075A0TE0100 | YSH Series 3/4" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0075A0TV0000 | YSH Series 3/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0075A0TV0100 | YSH Series 3/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0100A0SE0000 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0100A0SE0100 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0100A0SE0200 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/8" Perf screen |
| YSH0100A0SE0300 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 3/16" Perf screen |
| YSH0100A0SV0000 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0100A0SV0100 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0100A0SV0200 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/8" Perf screen |
| YSH0100A0SV0300 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 3/16" Perf screen |
| YSH0100A0TE0000 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0100A0TE0100 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0100A0TE0200 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/8" Perf screen |
| YSH0100A0TE0300 | YSH Series 1" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 3/16" Perf screen |
| YSH0100A0TV0000 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0100A0TV0100 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0100A0TV0200 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/8" Perf screen |
| YSH0100A0TV0300 | YSH Series 1" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 3/16" Perf screen |
| YSH0125A0SE0000 | YSH Series 1-1/4" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0125A0SE0100 | YSH Series 1-1/4" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0125A0SE0200 | YSH Series 1-1/4" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/8" Perf screen |
| YSH0125A0SE0300 | YSH Series 1-1/4" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 3/16" Perf screen |
| YSH0125A0SV0000 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0125A0SV0100 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0125A0SV0200 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/8" Perf screen |
| YSH0125A0SV0300 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 3/16" Perf screen |
| YSH0125A0TE0000 | YSH Series 1-1/4" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0125A0TE0100 | YSH Series 1-1/4"Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0125A0TE0200 | YSH Series 1-1/4"Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/8" Perf screen |
| YSH0125A0TE0300 | YSH Series 1-1/4" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 3/16" Perf screen |
| YSH0125A0TV0000 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0125A0TV0100 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0125A0TV0200 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/8" Perf screen |
| YSH0125A0TV0300 | YSH Series 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 3/16" Perf screen |
| YSH0150A0SE0000 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0150A0SE0100 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0150A0SE0200 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/8" Perf screen |
| YSH0150A0SE0300 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 3/16" Perf screen |
| YSH0150A0SV0000 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0150A0SV0100 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0150A0SV0200 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/8" Perf screen |
| YSH0150A0SV0300 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 3/16" Perf screen |
| YSH0150A0TE0000 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0150A0TE0100 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0150A0TE0200 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/8" Perf screen |
| YSH0150A0TE0300 | YSH Series 1-1/2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 3/16" Perf screen |
| YSH0150A0TV0000 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0150A0TV0100 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0150A0TV0200 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/8" Perf screen |
| YSH0150A0TV0300 | YSH Series 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 3/16" Perf screen |
| YSH0200A0SE0000 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0200A0SE0100 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0200A0SE0200 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 1/8" Perf screen |
| YSH0200A0SE0300 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Socket Ends, 3/16" Perf screen |
| YSH0200A0SV0000 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/32" Perf screen |
| YSH0200A0SV0100 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/16" Perf screen |
| YSH0200A0SV0200 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 1/8" Perf screen |
| YSH0200A0SV0300 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Socket Ends, 3/16" Perf screen |
| YSH0200A0TE0000 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0200A0TE0100 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0200A0TE0200 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 1/8" Perf screen |
| YSH0200A0TE0300 | YSH Series 2" Clear PVC Y- Strainers w/EPDM o-ring; Intergral Threaded Ends, 3/16" Perf screen |
| YSH0200A0TV0000 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/32" Perf screen |
| YSH0200A0TV0100 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/16" Perf screen |
| YSH0200A0TV0200 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 1/8" Perf screen |
| YSH0200A0TV0300 | YSH Series 2" Clear PVC Y- Strainers w/FPM o-ring; Intergral Threaded Ends, 3/16" Perf screen |
Monarch Asia Pacific Pty Ltd
Trading as Monarch Industrial Products
ABN 60 141 555 688
Unit 3, 8 Bult Drive, Brendale, QLD 4500
AUSTRALIA
Phone: +61 (0) 7 3889 9949
Monarch Asia Pacific Pty Ltd, © 2026 All Rights Reserved
Release: 26:1:0
