Replacement Strainer Baskets

Monarch manufactures replacement strainer baskets in Australia to suit most simplex, duplex and fabricated strainer bodies.

Some Compatible brands & models

• Oxford: Simplex & Duplex series (common sizes on file)
• Eaton: Model 72, Model 30R, Model 53BTX, Model 50
• Also: Plenty, Keckley, Titan, Hayward and fully custom baskets for legacy or fabricated bodies

Don’t see your model? We can reverse-engineer from your existing basket or dimensions.

What we make

• Types: Simplex baskets, duplex/change-over baskets, custom fabricated inserts
• Build options: Flat-top, domed/conical, slanted, centre-pull handles, lift lugs, reinforced spine/ring sets
• Perforation: 1.5, 0.8, 1.5, 2, 3, 4, 6, 8, 10 mm (many others on request)
• Mesh liners: 25 µm to 2000 µm, single/double layer, tack- and seam-welded
• Materials: 304/316 stainless (standard), carbon steel, 2205 duplex on request
• Finish: TIG/MIG, micro-resistance mesh welding, pickling/passivation available
• Documentation: MTCs, inspection reports (if required)

Engineered performance

• Built to miniumise differential pressure (ΔP)
• Heavy-duty options for high ΔP (rings, ribs, spine bars)
• Serviceability options: blow-down cones, magnetic traps, quick-clean handles

Lead times & supply

• Short lead times for standard stainless baskets
• Priority/urgent builds available
• Australia-wide shipping and export

• Drawing Download
• Fabrication & Machine Capacity

To assist us in providing a quick, accurate quotation, please use the below editable PDF drawings.
If you need assistance please call or email our sales team- Ph 07 3889 9949, Email: sales@monarchindustrial.com.au

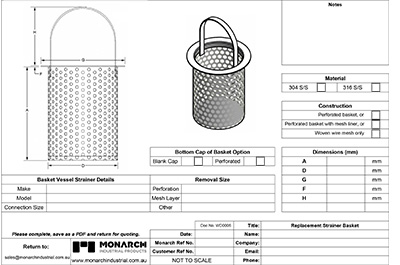

Standard Strainer Baskets

Standard type strainer baskets.
RFQ Drawing Download »

---

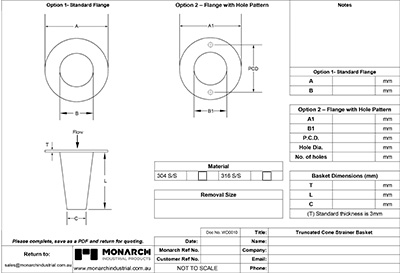

Conical Strainer Baskets

Truncated cone type strainer baskets
RFQ Drawing Download »

---

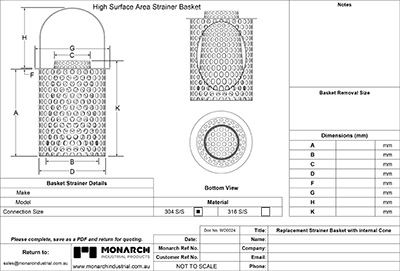

High Surface Area Strainer Basket with Conical Insert

Strainer basket with Truncated cone insert offering a increased gross surface area.
RFQ Drawing Download »

Supported by our Brisbane General Engineering Worshop

• MIG Welding
• TIG Welding
• Rotating Welding Positioner
• Spot Welding Pedestal & Handheld
• Micro Fine Mesh Spot Welding
• Laser Etching

• Centre Lathe
• CNC Plasma Cutter and Hand Held
• Workshop Press
• Swage & Jenny
• Metal passivating and electro polishing system
• 3D Printing

• NC Press brakes
• NC Guillotine
• Folding
• Milling Machine & Drilling etc.
• Rolling
• Cone Rolling Machine
