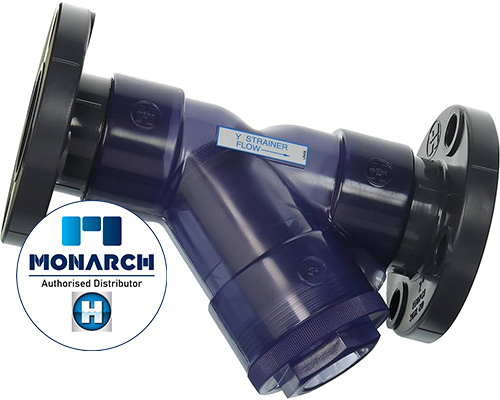

PVC Opaque Y Strainer
The Hayward YS Series Clear PVC Y Strainer is a compact, corrosion-resistant in-line strainer that lets operators visually inspect flow and screen condition without dismantling pipework. Designed for horizontal or vertical installation, it’s an ideal choice for chemical dosing lines, water treatment skids, process utilities, and general industrial services where fast servicing and reliable protection are essential.
TEXT
YS Series True Union Y-Strainers
| Code | BSP and Socket (FPM-Viton) |
| YS0015MTU | DN15 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; BSPT End Connections" |
| YS0015MSU | DN15 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; SKT End Connections" |
| YS0020MTU | DN20 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; BSPT End Connections" |
| YS0020MSU | DN20 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; SKT End Connections" |
| YS0025MTU | DN25 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; BSPT End Connections" |
| YS0025MSU | DN25 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; SKT End Connections" |
| YS0032MTU | DN32 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; BSPT End Connections" |
| YS0032MSU | DN32 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; SKT End Connections" |
| YS0040MTU | DN40 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; BSPT End Connections" |
| YS0040MSU | DN40 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; SKT End Connections" |
| YS0050MTU | DN50 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; BSPT End Connections" |
| YS0050MSU | DN50 CLEAR PVC TU Y-Strainers w/FPM o-ring; 1/32" perf screen; SKT End Connections" |
YS Series True Union Y-Strainers
| Code | NPT and Socket (FPM-Viton) |
| YS00050TU | 1/2" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00050SU | 1/2" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00075TU | 3/4" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00075SU | 3/4" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00100TU | 1" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00100SU | 1" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00125TU | 1-1/4" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00125SU | 1-1/4" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00150TU | 1-1/2" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00150SU | 1-1/2" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00200TU | 2" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00200SU | 2" Clear PVC TU Y-Strainer w/FPM o-ring; 1/32" perf screen; socket end connections" |
| Code | NPT, Socket and ANSI Flanged (FPM-Viton) Table D/E Flange codes T.B.A. |
| YS00050T | 1/2" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00050S | 1/2" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00075T | 3/4" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00075S | 3/4" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00100T | 1" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00100S | 1" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00125T | 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00125S | 1-1/4" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00150T | 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00150S | 1-1/2" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00200T | 2" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; threaded end connections" |
| YS00200S | 2" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; socket end connections" |
| YS00200F | 2" Clear PVC Y- Strainers w/FPM o-ring; 1/32" perf screen; flanged end connections" |
Maximum Flow Rate
The maximum recommended fluid velocity through this Hayward Product is five feet per second (8 ft/s), relative to the connection size fitted.
Higher fluid velocity can result in damage due to the water hammer effect.

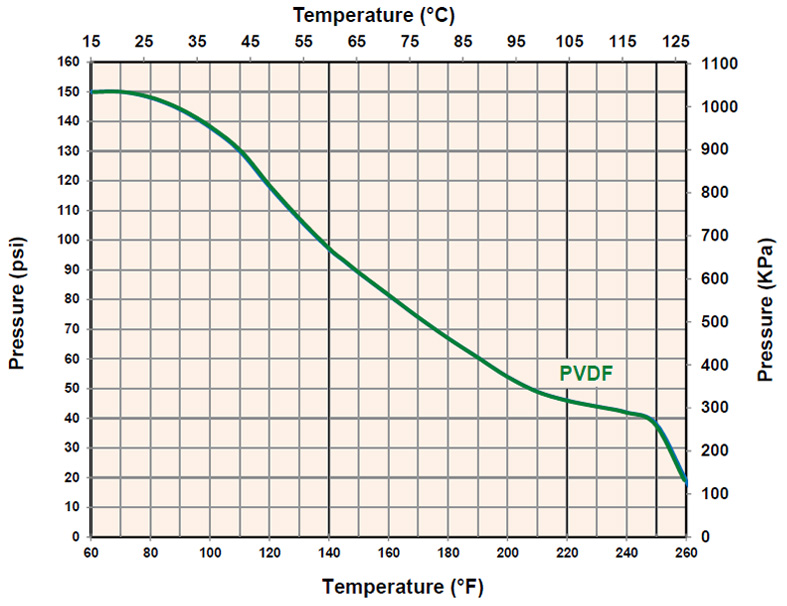

Operating Temperature vs Pressure Chart
The effect of temperature on plastic piping systems must be considered when the systems are initially designed. The pressure rating of plastic systems must be reduced with increasing temperature.
Maximum operating pressure is dependent upon material selection as well as operating temperature.
Before installing any product, consult the product literature for Pressure vs. Temperature curves to determine any operating pressure or temperature limitations.
