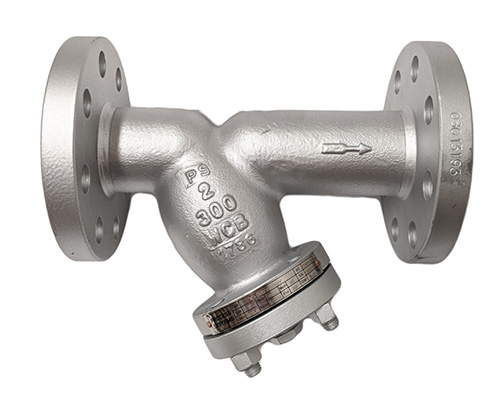

YSCS-300 Carbon Steel Y Strainer 300#
The ANSI 300 cast steel flanged Y strainer is designed for inline installation in industrial process pipelines where higher-pressure equipment protection is required. The Y-pattern body provides a compact and proven strainer arrangement, allowing suspended particles and pipeline debris to be captured before they reach sensitive downstream equipment.
The body is manufactured from ASTM A216 WCB cast steel and is fitted with a 304 stainless steel screen. The screen can be accessed through the bolted cover for periodic cleaning and maintenance, provided the pipeline is safely isolated, depressurised and drained before servicing.
These strainers are supplied with ANSI 300 raised face flanged connections and are available in sizes DN50 to DN300. The supplier-listed pressure range is 0 to 50 bar at ambient temperature, with media temperature listed up to 315°C at 38 bar. The units are designed to ASME B16.34, supplied with flanged ends to ASME B16.5 and tested to API 598.
Typical applications include steam lines, process water, brine, chemical service, plant utilities and general industrial pipelines. They are commonly installed upstream of pumps, control valves, pressure reducing valves, flow meters, spray nozzles and heat exchangers to help reduce equipment damage, blockage and unplanned maintenance.
Screens are made by Monarch Industrial Products in our Brisbane Workshop
Whether you require new or replacement Y Strainer screens for a particular brand or model, our team will work closely with you to guarantee an accurate fit.
- 0.5mm perforations
- 0.8mm perforations
- 1.0mm perforations
- 1.5mm perforations
- 2mm perforations
- 3mm perforations
- 4mm perforations
- 5mm perforations
- 6mm perforations
- 8mm perforations
- 10mm perforation
- 12mm perforations
- 0.8mm perforations
- 1.1mm perforations
- 1.5mm perforations
- 2mm perforations
- 3mm perforations
- 4mm perforations
- 5mm perforations
- 10mm perforation
- 900 Micron
- 810 Micron
- 530 Micron
- 415 Micron
- 310 Micron
- 260 Micron
- 210 Micron
- 190 Micron
- 150 Micron
- 130 Micron
- 100 Micron
- 80 Micron
- (5/14) 5 Micron Nominal, 14 Micron Absolute
- (10/18) 10 Micron Nominal, 18 Micron Absolute
- (15/26) 15 Micron Nominal, 26 Micron Absolute
- (25/38) 25 Micron Nominal, 38 Micron Absolute
- (35/45) 35 Micron Nominal, 45 Micron Absolute
Legend: Theoretical Pressure Drop - PSI (y - axis) versus Flow Rate - GPM (x -axis)
Please Note
- These curves are theoretical; actual results may vary depending on installation conditions and other variables. Use these values for reference only.
- The above pressure drop charts are based upon 3mm (1/8") perforated screens handling clean water at 15.5 °C (60 °F) during ideal inlet and outlet conditions. Therefore, they should only be used for estimation purposes.
Conversion Values
- 1 gallon (US)/minute = 3.785 L/min
- 1 psi = 6.89476 kPa or 1 kPa = 0.145038 psi
Multiply the Correction Factor by the pressure drop obtained from the charts to calculate Δ P for other liquids (besides water) and mesh lined screens and baskets.
| CORRECTION FACTOR TABLE | |||||||||||
| Centistokes | (SSU) | Perf. (Unlined) | 20 | 40 | 60 | 80 | 100 | 120 | 150 | 200 | 300 |
| MESH | MESH | MESH | MESH | MESH | MESH | MESH | MESH | MESH | |||
| 2 | 30 (Water) | 1 | 1.05 | 1.2 | 1.4 | 1.6 | 1.7 | 1 . 8 | 2 . 0 | 2 . 2 | 2.35 |
| 10 | 60 | 1.1 | 1.15 | 1.4 | 1.5 | 1.7 | 1.8 | 2.2 | 2.3 | 2 . 4 | 2.55 |
| 20 | 100 | 1.2 | 1.25 | 1.5 | 1.6 | 1.9 | 2.1 | 2.35 | 2.45 | 2 . 6 | 2.75 |
| 32 | 150 | 1.3 | 1.35 | 1.6 | 1.7 | 2 | 2.2 | 2.45 | 2.85 | 3 | 3.15 |
| 43 | 200 | 1.4 | 1.45 | 1.7 | 1.8 | 2.1 | 2.3 | 2.55 | 3 | 3.2 | 3.35 |
| 54 | 250 | 1.45 | 1.5 | 1.75 | 1.85 | 2.2 | 2.35 | 2.65 | 3.1 | 3.3 | 3.4 |
| 76 | 350 | 1.5 | 1.6 | 1.8 | 1.9 | 2.3 | 2.45 | 2.75 | 3.2 | 3.4 | 3.5 |
| 100 | 500 | 1.6 | 1.7 | 1.9 | 2.1 | 2.4 | 2.6 | 2.8 | 3.35 | 3.6 | 3.75 |
| 162 | 750 | 1.65 | 1.9 | 2.1 | 2.3 | 2.5 | 2.7 | 2.9 | 3.5 | 3.7 | 3.9 |
| 216 | 1000 | 1.7 | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3 | 3.6 | 3.8 | 4 |
| 325 | 1500 | 1.8 | 2.1 | 2.3 | 2.6 | 2.75 | 3 | 3.2 | 3.8 | 4.1 | 4.3 |
| 433 | 2000 | 1.9 | 2.2 | 2.4 | 2.7 | 2.9 | 3.2 | 3.4 | 4.05 | 4.6 | 5.5 |
| 650 | 3000 | 2 | 2.3 | 2.6 | 2.9 | 3.5 | 3.5 | 3.8 | 4.6 | 5 | 5.2 |
| 866 | 4000 | 2.1 | 2.45 | 2.8 | 3.15 | 3.6 | 3.9 | 4.2 | 4.9 | - - - | - - - |
| 1083 | 5000 | 2.2 | 2.6 | 3 | 3.4 | 3.8 | 4.2 | 4.6 | - - - | - - - | - - - |
| 1624 | 7500 | 2.35 | 2.8 | 3.4 | 3.8 | 4.3 | 4.75 | - - - | - - - | - - - | - - - |
| 2200 | 10000 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | - - - | - - - | - - - | - - - |
| 3000 | 13500 | 3 | 3.5 | - - - | - - - | - - - | - - - | - - - | - - - | - - - | - - - |
| 5000 | 22500 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7.5 | 8 | 8.5 | 9 |
| 6000 | 27300 | 4.2 | - - - | - - - | - - - | - - - | - - - | - - - | - - - | - - - | - - - |
| 15000 | 67000 | 6 | 6.5 | 7 | 7.5 | 8 | 8.5 | 9 | 9.5 | 10 | 10.5 |
| 18900 | 86000 | 8 | 8.5 | - - - | - - - | - - - | - - - | - - - | - - - | - - - | - - - |
| 20000 | 89300 | 8.5 | 9 | - - - | - - - | - - - | - - - | - - - | - - - | - - - | - - - |
Correction factors for mesh line screens and viscosities greater than 2 Centistokes (water)
| U.S. MESH | INCHES | MICRONS | MILLIMETERS |
| 20 | 0.0331 | 841 | 0.841 |
| 40 | 0.0165 | 400 | 0.4 |
| 60 | 0.0098 | 250 | 0.25 |
| 80 | 0.007 | 177 | 0.177 |
| 100 | 0.0059 | 149 | 0.149 |
| 150 | 0.0041 | 100 | 0.1 |
| 200 | 0.0029 | 74 | 0.074 |
| 300 | 0.0033 | 50 | 0.05 |
- These curves are theoretical; actual results may vary depending on installation conditions and other variables. Use these values for reference only.
- These curves are theoretical; actual results may vary depending on installation conditions and other variables. The above pressure drop charts are based upon 3mm (1/8") perforated screens handling clean water 15.5 °C (60 °F) during ideal inlet and outlet conditions. Therefore, they should only be used for estimation purposes.
