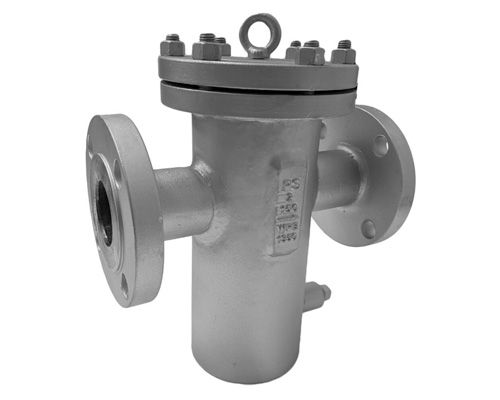

Oxford Cast Iron Simplex Basket Strainer

XSC-BSW Series - Cast Steel Basket Strainer

Model:

XSC-BSW

Application:

Liquid Filtration

Media:

Stainless Baskets

Brochure and Datasheet Downloads

The XSC-BSW Series Simplex Basket Strainer is very basic and cost-effective unit. Designed to ANSI B16.34 with flanges to ANSI B16.5 and tested in accordance with API 598. Please

Monarch Strainers and Filters are supported by our General Engineering Workshop in Brisbane. We also manufacture in Brisbane a comprehensive range of replacement baskets and screens.

Specifications
Basic Housing Codes
Basket Options

Material:

Cast Steel ASTM A105

Seals:

Spirial Wound

Basket:

1 off Basket in Stainless Steel (See options)

Pressure:

20 bar

Hex Bolts:

ASTM A193 Gr.B7

Options:

Differential Pressure Indicator

Connections:

ANSI 150#

Flange Sizes:

2", 2-1/2", 3", 4", 5", 6", 8", 10", 12"

Special order: 14", 16", 18", 20", 24"

Codes Flanged:

DN50 (2")

Code: XSC-BSW-050

DN65 (2-1/2")

Code: XSC-BSW-065

DN80 (3")

Code: XSC-BSW-080

DN100 (4")

Code: XSC-BSW-100

DN125 (5")

Code: XSC-BSW-125

DN150 (6")

Code: XSC-BSW-150

DN200 (8")

Code: XSC-BSW-200

DN250 (10")

Code: XSC-BSW-250

DN300 (12")

Code: XSC-BSW-300

Special Order

DN350 (14")

Code: XSC-BSW-350

DN400 (16")

Code: XSC-BSW-400

DN450 (18")

Code: XSC-BSW-450

DN500 (20")

Code: XSC-BSW-500

DN600 (24")

Code: XSC-BSW-600

Basket Options

Perforated (Imperial)

1/32", 3/64", 1/16", 1/8", 5/32", 3/16", 1/4", 3/8", 1/2"

Perforated (mm)

0.5, 0.8, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 12, 15mm

Fine Mesh (Mesh Sizes)

20, 40, 60, 80, 100, 150, 200, 325, 400 Mesh

Fine Mesh (Micron Sizes µ)

80, 100, 130, 150, 190, 210, 260, 310, 401, 530, 570, 600, 810, 900 Micron

Hollander Weave (Micron Sizes µ)

5/14, 10/18, 15/26, 25/38, 35/45, 55/75

(5 = Micron Nominal / 14 = Micron Absolute)

One of the most important design considerations when purchasing a strainer is specifying the perforation or mesh size of the straining element. If the removal size required is not listed, please contact our sales team.
