Oxford XS Cast Iron Basket Strainer
Application:
Liquid Strainer
Media:
Stainless Steel Basket


Oxford Filtration Model XS Series simplex strainers provide a simple cost-effective way to separate particle impurities from fluid flow systems.

Simplex models described in this brochure are designed for applications where temporary interruption of a batch process can be permitted for basket cleaning.

All strainers are individually pressure tested.

Material:
Cast Iron, ASTM A48/76 CLASS 35
Seals:
Buna-N, EPDM, Silicone, Viton, Teflon, Teflon Encapsulated Viton Rubber, Teflon Encapsulated Silicone, Neoprene, Butyl Rubber
Pressure:
125#
Eye Bolts:
Zinc Plated (Standard)
Options:
Differental Pressure Indicator
Magnets
Heating jacket
Connections:
ANSI, Table, PN16, BSP and NPT
Flange Sizes:
1", 1-1/2", 2", 2-1/2", 3", 4", 6", 8", 10", 12"
Threaded Sizes:
1", 1-1/2", 2", 2-1/2"
Perforated (Imperial)
1/32", 3/64", 1/16", 1/8", 5/32", 3/16", 1/4", 3/8", 1/2"
Perforated (mm)
0.5, 0.8, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 12mm
Fine Mesh
20, 40, 60, 80, 100, 150, 200, 325, 400
Custom Sizes
One of the most important design considerations when purchasing a strainer is specifying the perforation or mesh size of the straining element. If the removal size required is not listed, please contact our sales team.
Factors to be Taken Account of when Selecting a Strainer:
  • Fluid type
  • Flow rate
  • Viscosity
  • Temperature – operating and design
  • Pressure – operating and design
  • Degree of filtration required
  • Connection type i.e. flanged PN16, ASA150, screwed BSP, NPT
  • Any special requirements i.e. heating jacket, magnets, mounting brackets, dp indicator/switch etc.
Please refer to brochure for mesh basket correction factors.

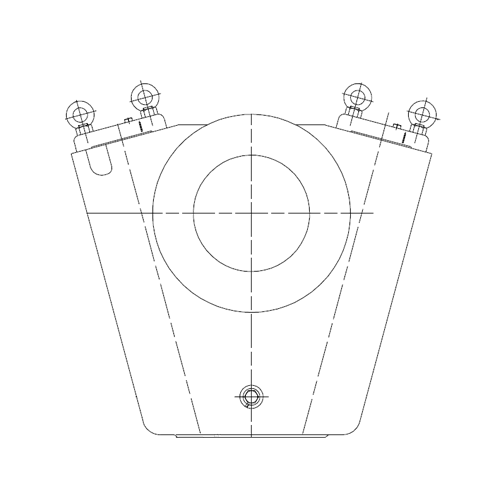

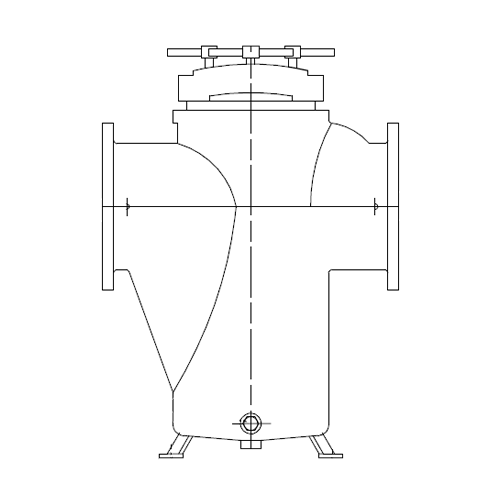

Codes Flanged:
DN25

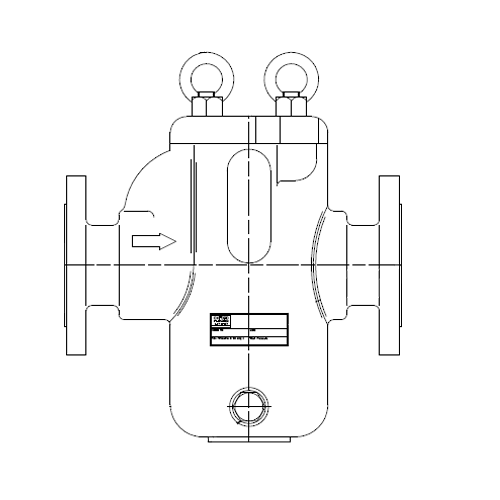

XS25F-*
DN40
XS40F-*
DN50
XS50F-*
DN65
XS65F-*
DN80
XS25F-*
DN100
XS100F-*
DN150
XS150F-*
DN200
XS200F-*
DN250
XS250F-*
DN300
XS300F-*
Codes Threaded:
DN25

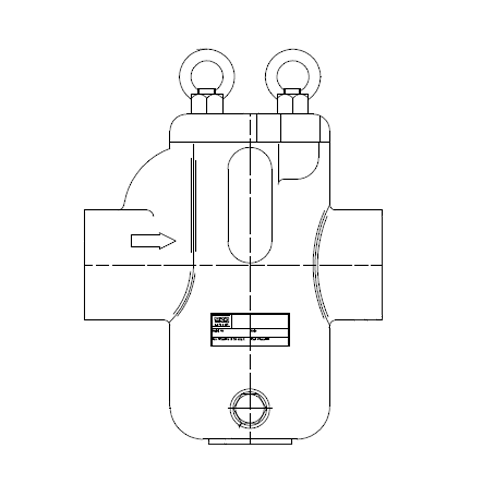

XS25S-**
DN40
XS40S-**
DN50
XS50S-**
DN65
XS65S-**
* Flange Type:
ANSI, PN16, Table E, etc.
** Thread Type:
BSP, NPT, etc.
Brochure and Datasheet Downloads

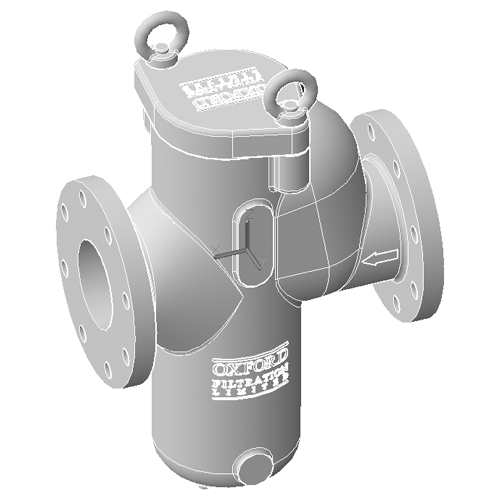

Simlex Strainer CAD Drawings
To assist us in providing a quotation or recommendation, please provide as much detail of your application as possible.
Contact Information
Please provide detailed contact information.
Special Requirements
Please provide details of any special requirements, lead times, certification or documentation etc.
Application
Liquid Type
Flow rate
Viscosity
System Pressure
Temperature
Micron Removal Size
Solids Loading
Particle Type (hard, soft, sticky, fibrous)
Equipment Details
Material
Connection Type
Connection Size
Seal Type
