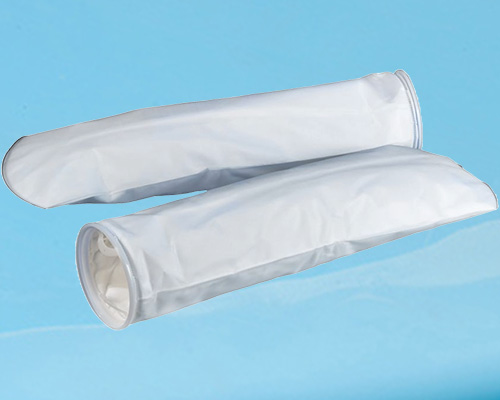

LofClear Filter Bag in Polypropylene

Series:

LofClear Series PO

Application:

Liquid Filtration

Bag Sizes:

01 and 02

Construction:

Plastic Top Seal Full Welded

Brochure and Datasheet Downloads

Monarch Industrial Products are distributors of Eaton Filtration’s LOFCLEAR™ 100 high-performance filter bags. Designed for absolute filtration where product quality and process reliability are critical, LOFCLEAR bags provide >99% particle removal efficiency across a wide range of micron ratings, offering a cost-effective alternative to traditional absolute cartridges in demanding liquid applications.

Each LOFCLEAR 100 filter bag features a robust three-layer melt-blown polypropylene construction with an outer spunbond cover layer that minimises fibre release and media migration. Welded to Eaton’s patented SENTINEL® polypropylene seal ring, the bags deliver 100% bypass-free sealing in compatible bag housings, with dirt-holding capacities up to 250 g and maximum operating temperature of 90 °C. Available in Sizes 01 and 02 with absolute ratings from 4–40 µm, LOFCLEAR bags are ideal for high-purity fluids, first-pass guard filtration, oil adsorption, activated carbon removal and many other critical process applications.

Specifications
Ordering Information

Filter Area:

01 Size - 0.24 m²
02 Size - 0.48 m²

Max. Differential Pressure:

2.5 bar (36 psi)

Recommended Change Out:

≈ 0.8 to 1.5 bar (11 to 22 psi)

Max. Operating Temperature:

PO - <90°C

Max. Flow Rates:

01 Size - 8 m³/h
02 Size - 15 m³/h
For fluids with a dynamic viscosity of 1 mPa∙s @ 20 °C

Model	Particle size removal efficiency (μm)
Size 02	>60%	>90%	>95%	>99%	*Δ P Bar
113/123	0.5	1	2	4	0.025
114/124	0.75	2	3	5	0.02
115/125	1.5	3.5	8	10	0.01
116/126	2	6	13	15	0.01
118/128	25	35	37	40	0.01
119/129	15	25	27	30	0.01
130	6	14	15	20	0.05
135	1	6	8	10	0.02
*Δp Bar @ 10m³ Size 02

Code Example: LCR - 123 - T 02 E - 25 XX

Material: (LCR)

LCR - Melt-blown Polypropylene

Micron Removal Efficiency: (123)

01 Size: 113, 114, 115, 116, 118, 119, 130 & 135
02 Size: 123, 124, 125, 126, 128, 129, 130 & 135
Refer to Chart

Cover Layer: (T)

T - Spunbond polypropylene

Size: (02)

01 - Ø178mm x 420mm
02 - Ø178mm x 810mm

Top Seal Ring: (E)

E - Plastic Seal/Welded (Polypropylene)

Full Box Quantity: (25)

25 = 25 bags in a full box
Note: Box quantity will change depending on bag size and micron rating.

Factory Code (XX)

Reserved for a factory code
