Accugaf Filter Bag in Polypropylene or Polyester
Brochure and Datasheet Downloads

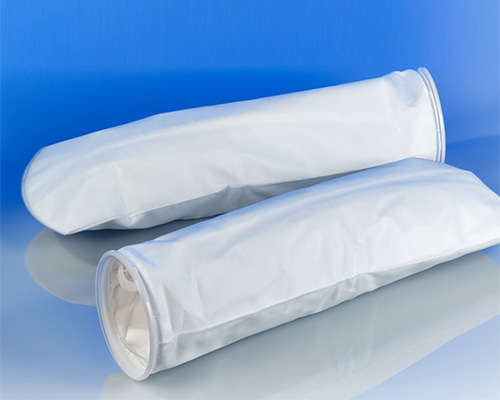

Monarch Industrial Products are distributors of Eaton Filtration’s ACCUGAF™ high-efficiency filter bags. Engineered for applications demanding efficiencies greater than 99%, ACCUGAF bags provide a cost-effective solution where consistent product quality, long service life and reliable protection of downstream equipment are critical.
ACCUGAF filter bags are manufactured from graded-density melt-blown polypropylene or polyester microfibre media to maximise dirt-holding capacity and reduce change-outs. The fully welded construction, double downstream cover layer and patented SENTINEL seal ring deliver true bypass-free performance in compatible bag housings. Available in Sizes 01 and 02 with retention ratings from 1.5–25 µm at >99% efficiency, ACCUGAF bags are ideal for beer, wine, spirits and beverage filtration, fine particle removal in parts cleaning, activated carbon removal, final filtration of vinegar and varnishes, as well as hydraulic oils, lubricants and many other demanding liquid applications.
02 Size - 0.48 m²
PE - <150°C
02 Size - 15 m³/h
For fluids with a dynamic viscosity of 1 mPa∙s @ 20 °C
| Model | Particle size removal efficiency (μm) | |||||
|---|---|---|---|---|---|---|
| Size 02 | >60% | >90% | >95% | >99% | >99.9% | *Δ P Bar |
| 51 | 0.2 | 0.6 | 0.8 | 1.5 | 5 | 0.09 |
| 53 | 0.8 | 1 | 2 | 3 | 5 | 0.22 |
| 55 | 1 | 2 | 3 | 5 | 15 | 0.05 |
| 57 | 2 | 4 | 5 | 10 | 25 | 0.04 |
| 59 | 10 | 20 | 22 | 25 | 35 | 0.03 |
| *Δp Bar @ 10m³ Size 02 | ||||||
Code Example: AGF - 51 - E 02 E - 0 - 20 XX
53 - 3 micron @ 99%
55 - 5 micron @ 99%
57 - 10 micron @ 99%
59 - 25 micron @ 99%
Refer to Chart
02 - Ø178mm x 810mm
Note: Box quantity will change depending on bag size and micron rating.
Code Example: AGFE - 51 - R 02 H - 0 - 20 XX
55 - 5 micron @ 99%
57 - 10 micron @ 99%
Refer to Chart
02 - Ø178mm x 810mm
Note: Box quantity will change depending on bag size and micron rating.
