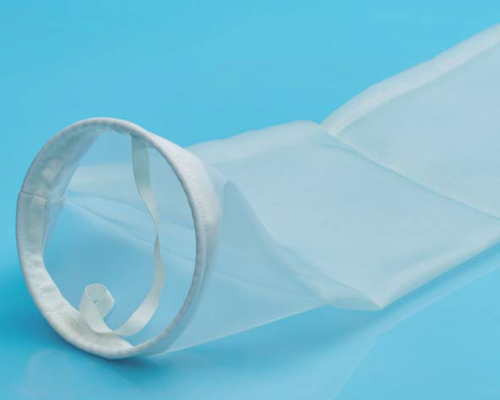

Nylon Monofilament Filter Bags

Series:

Standard NMO Bags

Application:

Liquid Filtration

Bag Sizes:

01, 02, 03 and 04

Construction:

Plastic Top and Snap Ring Seals

Brochure and Datasheet Downloads

Monarch Industrial Products supplies a versatile range of Nylon Monofilament (NMO series) filter bags designed for precise surface filtration where sharp particle cut-off and clean, reusable media are required. Manufactured from heat-stabilised nylon monofilament mesh, these bags efficiently remove solid particles larger than the rated pore size and are ideal for applications such as automotive coating and degreasing systems, cutting fluids, resins, chemicals, solvents, recycled water and many other process liquids.

Available in standard Sizes 01–04 with retention ratings from 5–1250 µm, NMO filter bags offer high flow capacity and low pressure drop. Customers can choose from welded polypropylene seal rings (various styles) or sewn stainless steel snap rings to suit most industry-standard bag filter housings. The mesh is free from crater-forming substances (such as silicones), features reinforced side seams to minimise bypass on finer ratings, and can operate at temperatures up to 170 °C, making Nylon Monofilament filter bags a reliable choice for demanding surface filtration duties.

Specifications
Ordering Information

Filter Area:

01 Size - 0.24 m²
02 Size - 0.48 m²
03 Size - 0.08 m²
04 Size - 0.16 m²

Max. Differential Pressure:

2.5 bar (36 psi)

Recommended Change Out:

0.8 to 1.5 bar (11 to 22 psi)

Max. Operating Temperature:

NMO - <170°C

Max. Flow Rates:

01 Size - 20 m³/h
02 Size - 40 m³/h
03 Size - 6 m³/h
04 Size - 12 m³/h
For fluids with a dynamic viscosity of 1 mPa∙s @ 20 °C

Retention Efficiency:

Effectively Absolute

Features and benefits:

Heat-stabilized mesh resists deformation
Reinforced side seams to prevent liquid bypass through needle holes （only for filtration rating 125 μm bag and below)
Food grade models are available

Code Example: NMO - 100 - P 02 E - 020 - (XX)

Material: (NMO)

NMO - Polypropylene felt

Micron Rating: (1)

5*, 10*, 25, 50, 75, 80, 100, 125, 150, 175, 180, 200, 250, 300, 400, 600, 800, 1000, 1250 micron
* Special order

Cover Layer: (P)

P - No Cover, downstream side is singed

Size: (02)

01 - Ø178mm x 420mm
02 - Ø178mm x 810mm
03 - Ø102mm x 230mm
04 - Ø102mm x 410mm

Top Seal Ring: (E)

E - Plastic Seal (Polypropylene)
S - Snap Ring (316 S/Steel)
S - Eaton Brand - Snap Ring (Carbon Steel)
A - Eaton Brand - Snap Ring (316 S/Steel)

Full Box Quantity: (020)

020 = 20 bags in a full box
Note: Box quantity will change depending on bag size and micron rating.

Factory Code (XX)

Reserved for a factory code
