String Wound Cartridge (4.5") DOE

Series:

SFW Series

Application:

Liquid Filtration

Lengths:

10" and 20" (refer order information)

Connections:

DOE - Double Open End

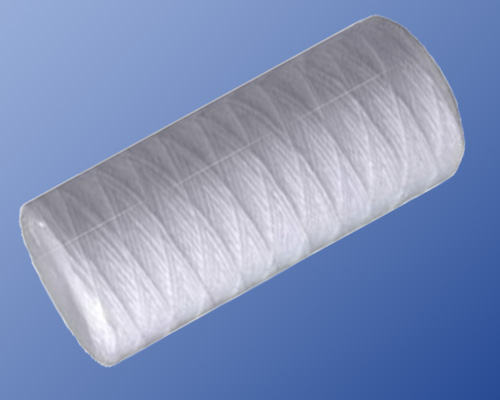

The 4.5" DOE String Wound Filter Cartridge is built for reliable sediment removal in domestic and small commercial liquid filtration systems. It provides a compact, easy-to-install and easy-to-maintain solution for removing suspended particulate and reducing fine sediment such as sand, silt, rust, and scale, helping protect downstream equipment and improve overall water quality.

Constructed from polypropylene string roving wound onto a slotted polypropylene core for added strength, the cartridge is wound in a precise pattern to maximise surface area. This depth-filtration construction delivers high dirt-holding capacity with minimal pressure drop, offering a long-standing track record of consistent, dependable performance.

Specifications

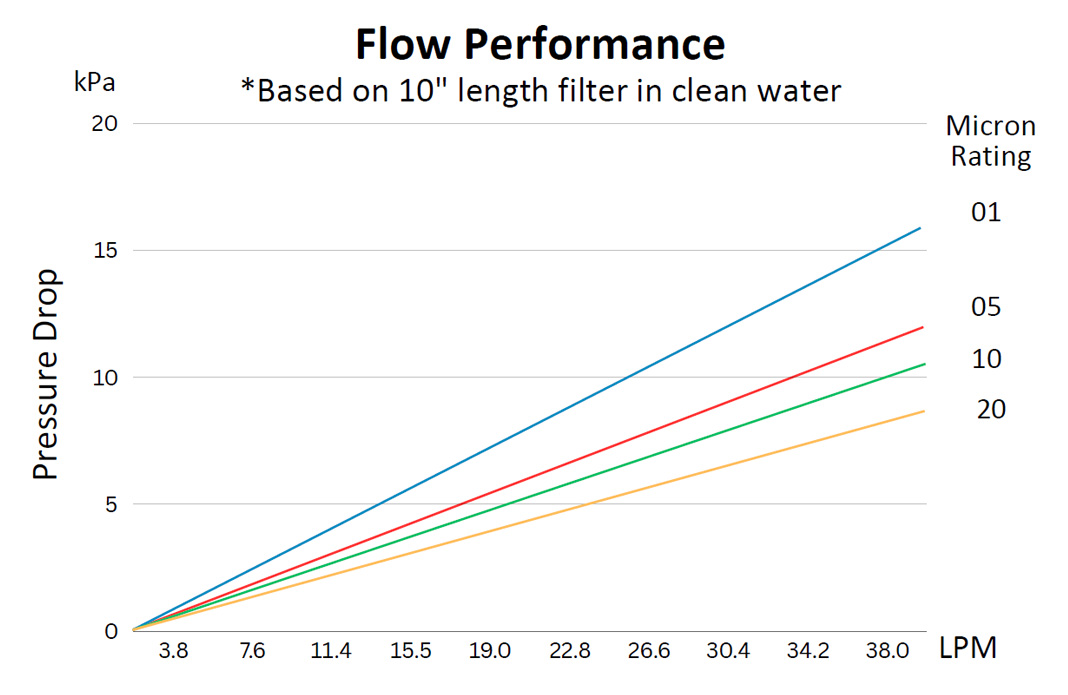

Flow Chart
Ordering Information

Micron Removal Sizes:

1, 5, 10 and 20 micron

Cartridge Lengths:

10" (250mm)
20" (508mm)

Recommended Change Out:

69 kPa (10 psi)

Outside Diameter:

114mm (4-1/2")

Inside Diameter:

28mm (1-1/8")

Max. Operating Temperature:

4.4°C - 70°C

End Type:

DOE (Double Open End)

Caution:

For drinking water applications, do not use water that is microbiologically unsafe or of unknown quality without prior adequate disinfection.

Removal Size	10" Codes	20" Codes
1 Micron	WCSFW10L01	WCSFW20L01
5 Micron	WCSFW10L05	WCSFW20L05
10 Micron	WCSFW10L10	WCSFW20L10
20 Micron	WCSFW10L20	WCSFW20L20
	Box QTY: 6 x 10" Cartridges	Box QTY: 6 x 20" Cartridges
