String Wound Cartridge (2.5") DOE

Series:

SFW Series

Application:

Liquid Filtration

Lengths:

10", 20", 30" and 40" (refer order information)

Connections:

DOE - Double Open End

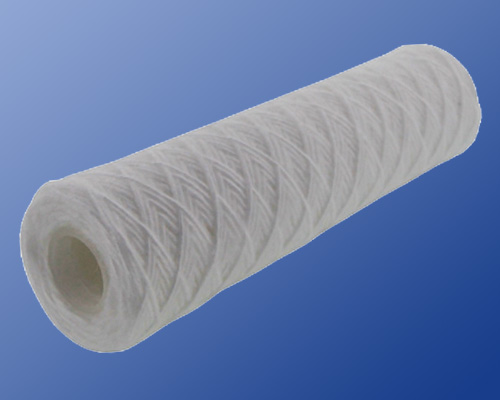

The 2.5" DOE String Wound Filter Cartridge is a proven, cost-effective solution for removing suspended particulate from liquids in domestic and light commercial filtration systems. Compact and easy to install, it helps reduce fine sediment and debris such as sand, silt, rust, and scale, protecting downstream equipment and improving water quality.

Manufactured from polypropylene string roving wound onto a slotted polypropylene core for added strength, the cartridge is wound in a precise pattern to maximise surface area. This depth-filtration design delivers high dirt-holding capacity with minimal pressure drop, providing reliable, consistent performance over a long service life.

Specifications

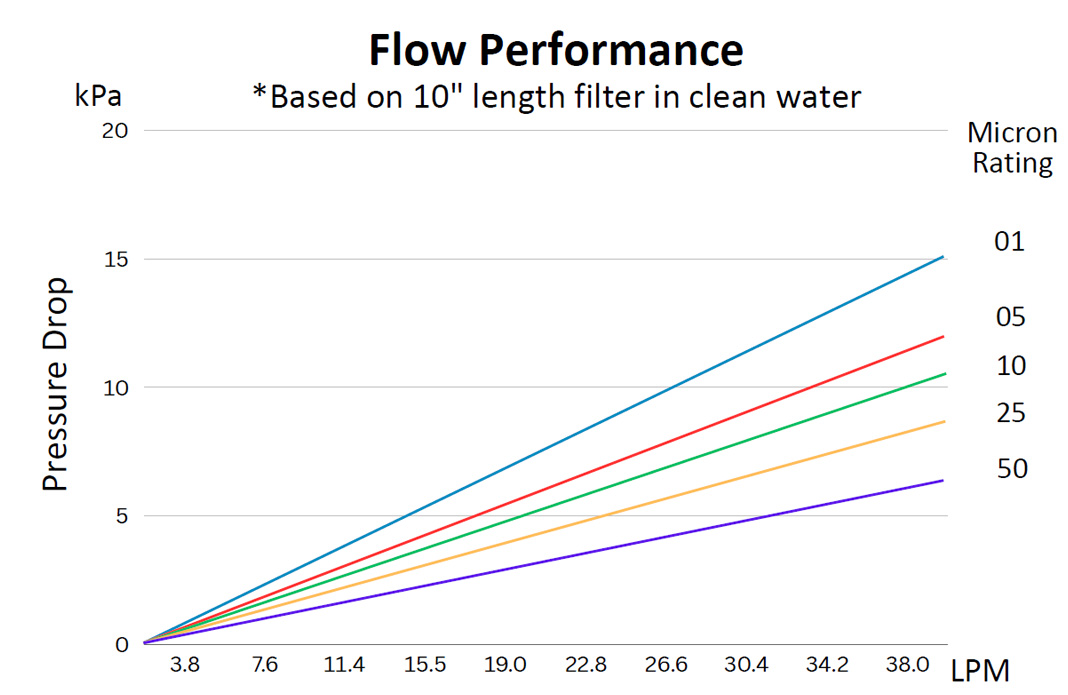

Flow Chart
Ordering Information

Micron Removal Sizes:

1, 5, 10, 25 and 50 micron

Cartridge Lengths:

10" (250mm)
20" (508mm)
30" (762mm)
40" (1016mm)

Recommended Change Out:

69 kPa (10 psi)

Outside Diameter:

60mm (2-1/4")

Inside Diameter:

28mm (1-1/8")

Max. Operating Temperature:

4.4°C - 70°C

End Type:

DOE (Double Open End)

Caution:

For drinking water applications, do not use water that is microbiologically unsafe or of unknown quality without prior adequate disinfection.

Removal Size	10" Codes	20" Codes	30" Codes	40" Codes
1 Micron	WCSFW10S01	WCSFW20S01	WCSFW30S01	WCSFW40S01
5 Micron	WCSFW10S05	WCSFW20S05	WCSFW30S05	WCSFW40S05
10 Micron	WCSFW10S10	WCSFW20S10	-	-
25 Micron	WCSFW10S25	WCSFW20S25	-	-
50 Micron	WCSFW10S50	-	-	-
	Box QTY: 30 x 10" Cartridges	Box QTY: 20 x 20" Cartridges	Box QTY: 20 x 30" Cartridges	Box QTY: 20 x 40" Cartridges
