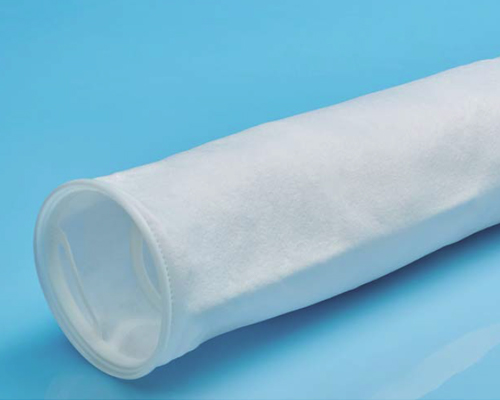

Extended Life Polyester Fully Welded Filter Bags

Series:

Standard Felt Filter Bag PEXL

Application:

Liquid Filtration

Bag Sizes:

01 and 02

Construction:

Plastic Top Seal Full Welded

Brochure and Datasheet Downloads

Monarch Industrial Products also offers Extended Life (Long Life) polyester needle felt filter bags in a fully welded construction for applications requiring higher temperature capability and robust chemical performance. The optimised depth structure and increased thickness of the long-life polyester media extend bag lifetime by approximately two to five times compared with standard filter bags, supporting longer run times and fewer change-outs in critical process lines.

PEXL series Extended Life polyester bags are supplied with welded plastic seal rings for accurate, bypass-free sealing in compatible housings. The downstream surface is singed to minimise fibre release, delivering cleaner filtrate and protecting downstream equipment. Available in Sizes 01 and 02 with retention ratings from 1–100 µm and a maximum operating temperature below 140 °C, these bags are ideal for higher-temperature automotive and industrial coatings, electrophoretic paint and plating, lubricating and hydraulic oils, chemicals, solvents, amines, edible oils, syrups, water and many other process liquids.

Specifications
Ordering Information

Filter Area:

01 Size - 0.24 m²
02 Size - 0.48 m²

Max. Differential Pressure:

2.5 bar (36 psi)

Recommended Change Out:

0.8 to 1.5 bar (11 to 22 psi)

Max. Operating Temperature:

PO - <140°C

Max. Flow Rates:

01 Size - 20 m³/h
02 Size - 40 m³/h
For fluids with a dynamic viscosity of 1 mPa∙s @ 20 °C

Retention Efficiency:

Nominal

Features and benefits:

Material is free from crater-forming substances (such as silicones etc.)
Downstream side is singed using a special heat process to eliminate fiber migration
Food grade models are available

Code Example: PEXL - 1 - P 02 E - 020 - (XX)

Material: (PE)

PE - Polypropylene felt

Micron Rating: (1)

1, 5, 10, 25, 50 and 100 micron

Cover Layer: (P)

P - No Cover, downstream side is singed

Size: (02)

01 - Ø178mm x 420mm
02 - Ø178mm x 810mm

Top Seal Ring; (E)

E - Plastic Seal/Welded (Polyester)
L - Eaton Brand - Welded (Polyester)

Full Box Quantity: (020)

020 = 20 bags in a full box
Note: Box quantity will change depending on bag size and micron rating.

Factory Code (XX)

Reserved for a factory code
