Oxford Cast Iron Duplex Basket Strainer
  • Oxford Stainless Steel Duplex Basket Strainer

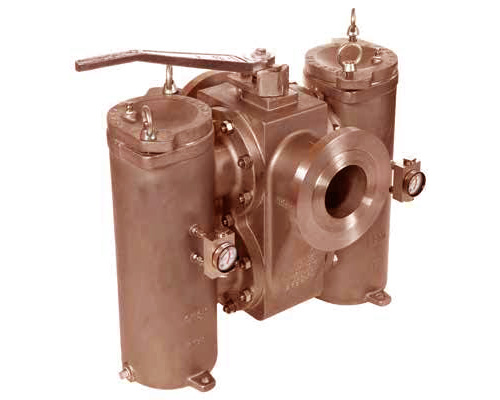

Oxford XDGM - Bronze Duplex Basket Strainer 150#

Model:
Oxford XDGM Bronze
Application:
Liquid Filtration
Colour:
Self
Media:
Stainless Baskets

Brochure and Datasheet Downloads

Monarch - Oxford XDGM Duplex Basket Strainers in Bronze are made for industrial strainer applications and are available in a large variety of connection sizes and strainer basket removal sizes.

Duplex Basket Strainers are designed for applications where temporary interruption of a batch process can be permitted for basket cleaning.

Choice of material of construction is based on chemical compatibility and application requirements. All strainers are individually pressure tested.

"Monarch Strainers and Filters are supported by our General Engineering Workshop in Brisbane. We also manufacture in Brisbane a comprehensive range of replacement baskets and screens."

Material:
ASTM B62/52T
Seals:
Buna-N/Nitrile (Standard), other materials available on request
Basket:
1 off Basket in Stainless Steel
Pressure:
150#
Eye Bolts:
Zinc Plated (Standard)
Options:
Differential Pressure Indicator
Magnets
Heating jacket
Connections:
ANSI, Table, PN16, BSP and NPT
Flange Sizes:
1", 1-1/2", 2", 2-1/2", 3", 4", 6", 8", 10"
Threaded Sizes:
1", 1-1/2", 2", 2-1/2"
Factors to be Taken Account of when Selecting a Strainer:
  • Fluid type
  • Flow rate
  • Viscosity
  • Temperature – operating and design
  • Pressure – operating and design
  • Degree of filtration required
  • Connection type i.e. flanged PN16, ASA150, screwed BSP, NPT
  • Any special requirements i.e. heating jacket, magnets, mounting brackets, dp indicator/switch etc.
For most applications the clean differential pressure should be less than 0.2 bar (3 psi).

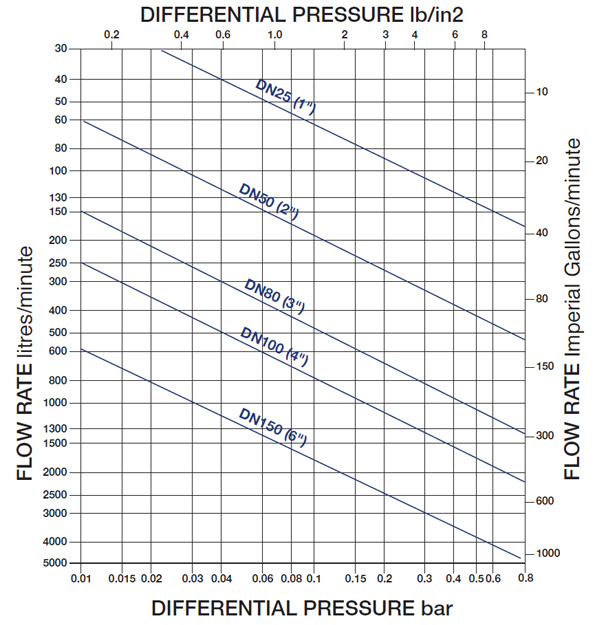

The chart is for water (1cSt) flowing through a filter with an element coarser than 1mm perforations.
Please refer to brochure for viscosity and mesh basket correction factors.

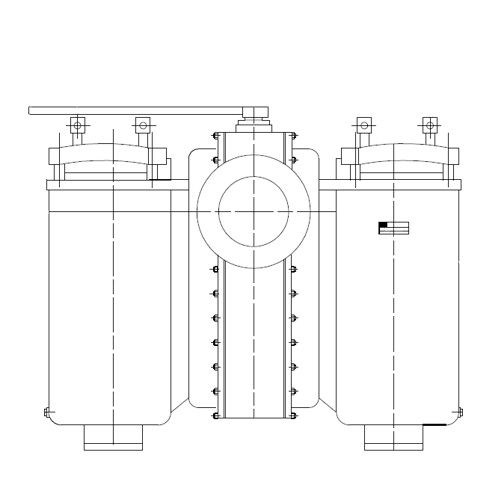

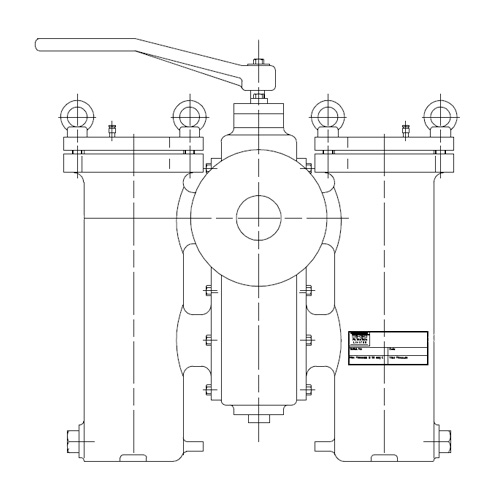

Codes Flanged:
DN25 (1")
XDGM25F-*
DN40 (1-1/2")
XDGM40F-*
DN50 (2")
XDGM50F-*
DN65 (2-1/2")
XDGM65F-*
DN80 (3")
XDGM25F-*
DN100 (4")
XDGM100F-*
DN150 (6")
XDGM150F-*
DN200 (8")
XDGM200F-*
DN250 (10")
XDGM250F-*

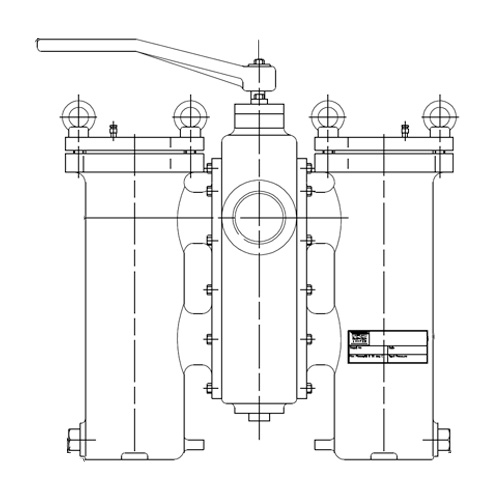

Codes Threaded:
DN20 (3/4")
XDGM20S-**
DN25 (1")
XDGM25S-**
DN40 (1-1/2")
XDGM40S-**
DN50 (2")
XDGM50S-**
DN65 (2-1/2")
XDGM65S-**
* Flange Type:
ANSI, PN16, Table E, etc.
** Thread Type:
BSP, NPT, etc.

Basket Options

Perforated (Imperial)
1/32", 3/64", 1/16", 1/8", 5/32", 3/16", 1/4", 3/8", 1/2"
Perforated (mm)
0.5, 0.8, 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 12, 15mm
Fine Mesh (Mesh Sizes)
20, 40, 60, 80, 100, 150, 200, 325, 400 Mesh
Fine Mesh (Micron Sizes µ)
80, 100, 130, 150, 190, 210, 260, 310, 401, 530, 570, 600, 810, 900 Micron
Hollander Weave (Micron Sizes µ)
5/14, 10/18, 15/26, 25/38, 35/45, 55/75
(5 = Micron Nominal / 14 = Micron Absolute)
One of the most important design considerations when purchasing a strainer is specifying the perforation or mesh size of the straining element. If the removal size required is not listed, please contact our sales team.
