TEXT
- Stainless Steel Strainer Baskets
- Pressure Differential Gauge and Switch
- Baskets Available with Mesh Liner
- True Union
- Ergonomic Hand-Removable Cover
- In-Line or Loop Connections
- External Cover Threads
- Integral Flat Mounting Bases
- PVC Basket Standard Standard
| Code | BSP, Socket and PN10 Flanged (FPM-Viton) Table D/E Flange codes T.B.A. |
| Under Review |
| Code | NPT, Socket and ANSI Flanged (FPM-Viton) Table D/E Flange codes T.B.A. |
| DBC050ST | "1/2"" EASTAR Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DBC050F | "1/2"" EASTAR Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DBC075ST | "3/4"" EASTAR Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DBC075F | "3/4"" EASTAR Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DBC100ST | "1"" EASTAR Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DBC100F | "1"" EASTAR Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DBC125ST | "1-1/4"" EASTAR Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DBC125F | "1-1/4"" EASTAR Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DBC150ST | "1-1/2"" EASTAR Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DBC150F | "1-1/2"" EASTAR Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DBC200ST | "2"" EASTAR Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DBC200F | "2"" EASTAR Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DBC300S | "3"" EASTAR Duplex Basket Strainer w/FPM o-rings; socket end connections" |
| DBC300T | "3"" EASTAR Duplex Basket Strainer w/FPM o-rings; threaded end connections" |
| DBC300F | "3"" EASTAR Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DBC400S | "4"" EASTAR Duplex Basket Strainer w/FPM o-rings; socket end connections" |
| DBC400T | "4"" EASTAR Duplex Basket Strainer w/FPM o-rings; threaded end connections" |
| DBC400F | "4"" EASTAR Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| Code | NPT, Socket and ANSI Flanged (FPM-Viton) Table D/E Flange codes T.B.A. |
| DBC050STE | "1/2"" EASTAR Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DBC050FE | "1/2"" EASTAR Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DBC075STE | "3/4"" EASTAR Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DBC075FE | "3/4"" EASTAR Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DBC100STE | "1"" EASTAR Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DBC100FE | "1"" EASTAR Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DBC125STE | "1-1/4"" EASTAR Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DBC125FE | "1-1/4"" EASTAR Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DBC150STE | "1-1/2"" EASTAR Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DBC150FE | "1-1/2"" EASTAR Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DBC200STE | "2"" EASTAR Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DBC200FE | "2"" EASTAR Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DBC300SE | "3"" EASTAR Duplex Basket Strainer w/EPDM o-rings; socket end connections" |
| DBC300TE | "3"" EASTAR Duplex Basket Strainer w/EPDM o-rings; threaded end connections" |
| DBC300FE | "3"" EASTAR Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DBC400SE | "4"" EASTAR Duplex Basket Strainer w/EPDM o-rings; socket end connections" |
| DBC400TE | "4"" EASTAR Duplex Basket Strainer w/EPDM o-rings; threaded end connections" |
| DBC400FE | "4"" EASTAR Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| Connection | Velocity | Approx Flow Rate lt/hr | |
| DN15 | 1/2" | 5 feet/sec | 870 |
| DN20 | 3/4" | 5 feet/sec | 1,580 |
| DN25 | 1" | 5 feet/sec | 2,600 |
| DN32 | 1-1/4" | 5 feet/sec | 4,325 |
| DN40 | 1-1/2" | 5 feet/sec | 6,320 |
| DN50 | 2" | 5 feet/sec | 10,560 |
| DN65 | 2-1/2" | 5 feet/sec | N/A in this product |
| DN80 | 3" | 5 feet/sec | 23,050 |
| DN100 | 4" | 5 feet/sec | 40,850 |
Body/Basket Sizes

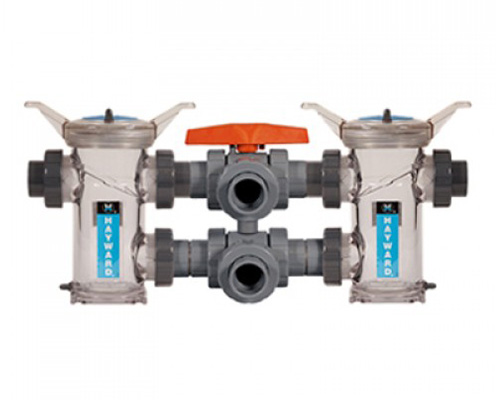

The Hayward SB Strainer is based on 4 standard physical body and basket sizes.
- Body size 1 can be fitted with 1/2", 3/4" or 1" connections.
- Body size 2 can be fitted with 1-1/4", 1-1/2" or 2" connections.
- Body size 4 can be fitted with 2-1/2", 3" or 4" connections.
- Body size 6 can be fitted with 6" or 8" connections.
Maximum Flow Rate
The maximum recommended fluid velocity through this Hayward Product is five feet per second (5 ft/s), relative to the connection size fitted. Higher fluid velocity can result in damage due to the water hammer effect.
Operating Temperature vs Pressure Chart
The effect of temperature on plastic piping systems must be considered when the systems are initially designed. The pressure rating of plastic systems must be reduced with increasing temperature.
Maximum operating pressure is dependent upon material selection as well as operating temperature.
Before installing any product, consult the product literature for Pressure vs. Temperature curves to determine any operating pressure or temperature limitations.

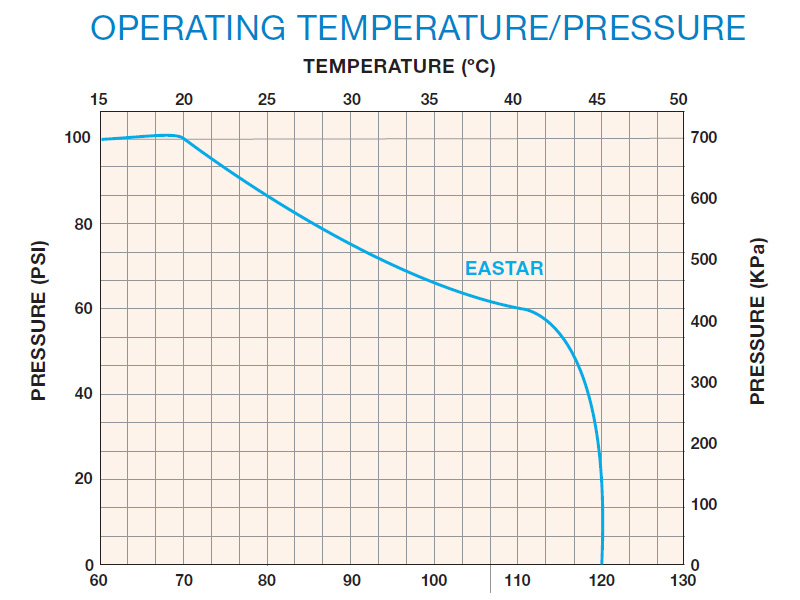

Chart for Eastar Body Material
Chart for PVC Valves and Union Fittings Material
Basket Options
