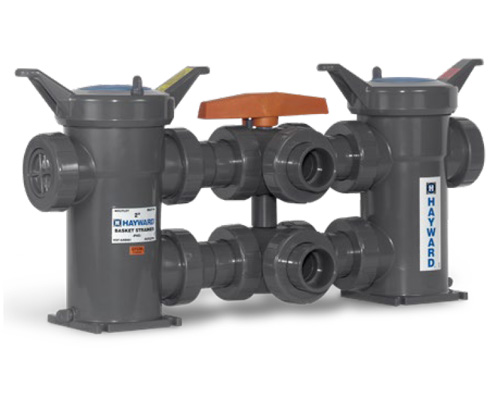

Material:
PVC Cell Class 12454 per ASTM D1784
Seals:
(FPM) Viton or EPDM
Connections:
ANSI, PN10, Table Flanged, Socket, BSP & NPT Threaded
ANSI Flanged:
1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
PN10 Flanged:
DN15, 20, 25, 32, 40, 50, 65, 80, 100
Table D/E Flanged:
2", 3", 4"
Socket Sizes:
1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
BSP and NPT:
1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
Options
- Stainless Steel Strainer Baskets
- Pressure Differential Gauge and Switch
- Baskets Available with Mesh Liner
Features
- True Union
- Ergonomic Hand-Removable Cover
- In-Line or Loop Connections
- External Cover Threads
- Integral Flat Mounting Bases
- PVC Basket Standard Standard
| Code | BSP, Socket and PN10 Flanged (FPM-Viton) Table D/E Flange codes T.B.A. |
| DB1015MT | DN15 PVC Duplex Basket Strainer w/FPM o-rings; BSPT End Connections |
| DB1015MS | DN15 PVC Duplex Basket Strainer w/FPM o-rings; SKT End Connections |
| DB1015MF | DN15 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| DB1020MT | DN20 PVC Duplex Basket Strainer w/FPM o-rings; BSPT End Connections |
| DB1020MS | DN20 PVC Duplex Basket Strainer w/FPM o-rings; SKT End Connections |
| DB1020MF | DN20 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| DB1025MT | DN25 PVC Duplex Basket Strainer w/FPM o-rings; BSPT End Connections |
| DB1025MS | DN25 PVC Duplex Basket Strainer w/FPM o-rings; SKT End Connections |
| DB1025MF | DN25 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| DB1032MT | DN32 PVC Duplex Basket Strainer w/FPM o-rings; BSPT End Connections |
| DB1032MS | DN32 PVC Duplex Basket Strainer w/FPM o-rings; SKT End Connections |
| DB1032MF | DN32 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| DB1040MT | DN40 PVC Duplex Basket Strainer w/FPM o-rings; BSPT End Connections |
| DB1040MS | DN40 PVC Duplex Basket Strainer w/FPM o-rings; SKT End Connections |
| DB1040MF | DN40 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| DB1050MT | DN50 PVC Duplex Basket Strainer w/FPM o-rings; BSPT End Connections |
| DB1050MS | DN50 PVC Duplex Basket Strainer w/FPM o-rings; SKT End Connections |
| DB1050MF | DN50 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| DB1065MT | DN65 PVC Duplex Basket Strainer w/FPM o-rings; BSPT End Connections |
| DB1065MS | DN65 PVC Duplex Basket Strainer w/FPM o-rings; SKT End Connections |
| DB1065MF | DN65 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| DB1080MT | DN80 PVC Duplex Basket Strainer w/FPM o-rings; BSPT End Connections |
| DB1080MS | DN80 PVC Duplex Basket Strainer w/FPM o-rings; SKT End Connections |
| DB1080MF | DN80 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| DB1100MT | DN100 PVC Duplex Basket Strainer w/FPM o-rings; BSPT End Connections |
| DB1100MS | DN100 PVC Duplex Basket Strainer w/FPM o-rings; SKT End Connections |
| DB1100MF | DN100 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| DB1600MFT | DN150 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| DB1800MFT | DN200 PVC Duplex Basket Strainer w/FPM o-rings; PN10 FLGD End Connections |
| Code | BSP, Socket and PN10 Flanged (EPDM) Table D/E Flange codes T.B.A. |
| DB1015MTE | DN15 PVC Duplex Basket Strainer w/EPDM o-rings; BSPT End Connections |
| DB1015MSE | DN15 PVC Duplex Basket Strainer w/EPDM o-rings; SKT End Connections |
| DB1015MFE | DN15 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| DB1020MTE | DN20 PVC Duplex Basket Strainer w/EPDM o-rings; BSPT End Connections |
| DB1020MSE | DN20 PVC Duplex Basket Strainer w/EPDM o-rings; SKT End Connections |
| DB1020MFE | DN20 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| DB1025MTE | DN25 PVC Duplex Basket Strainer w/EPDM o-rings; BSPT End Connections |
| DB1025MSE | DN25 PVC Duplex Basket Strainer w/EPDM o-rings; SKT End Connections |
| DB1025MFE | DN25 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| DB1032MTE | DN32 PVC Duplex Basket Strainer w/EPDM o-rings; BSPT End Connections |
| DB1032MSE | DN32 PVC Duplex Basket Strainer w/EPDM o-rings; SKT End Connections |
| DB1032MFE | DN32 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| DB1040MTE | DN40 PVC Duplex Basket Strainer w/EPDM o-rings; BSPT End Connections |
| DB1040MSE | DN40 PVC Duplex Basket Strainer w/EPDM o-rings; SKT End Connections |
| DB1040MFE | DN40 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| DB1050MTE | DN50 PVC Duplex Basket Strainer w/EPDM o-rings; BSPT End Connections |
| DB1050MSE | DN50 PVC Duplex Basket Strainer w/EPDM o-rings; SKT End Connections |
| DB1050MFE | DN50 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| DB1065MTE | DN65 PVC Duplex Basket Strainer w/EPDM o-rings; BSPT End Connections |
| DB1065MSE | DN65 PVC Duplex Basket Strainer w/EPDM o-rings; SKT End Connections |
| DB1065MFE | DN65 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| DB1080MTE | DN80 PVC Duplex Basket Strainer w/EPDM o-rings; BSPT End Connections |
| DB1080MSE | DN80 PVC Duplex Basket Strainer w/EPDM o-rings; SKT End Connections |
| DB1080MFE | DN80 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| DB1100MTE | DN100 PVC Duplex Basket Strainer w/EPDM o-rings; BSPT End Connections |
| DB1100MSE | DN100 PVC Duplex Basket Strainer w/EPDM o-rings; SKT End Connections |
| DB1100MFE | DN100 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| DB1600MFTE | DN150 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| DB1800MFTE | DN200 PVC Duplex Basket Strainer w/EPDM o-rings; PN10 FLGD End Connections |
| Code | NPT, Socket and ANSI Flanged (FPM-Viton) Table D/E Flange codes T.B.A. |
| DB1050ST | 1/2" PVC Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DB1050F | 1/2" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DB1075ST | 3/4" PVC Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DB1075F | 3/4" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DB1100ST | 1" PVC Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DB1100F | 1" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DB1125ST | 1-1/4" PVC Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DB1125F | 1-1/4" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DB1150ST | 1-1/2" PVC Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DB1150F | 1-1/2" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DB1200ST | 2" PVC Duplex Basket Strainer w/FPM o-rings; socket/threaded end connections" |
| DB1200F | 2" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DB1250T | 2-1/2" PVC Duplex Basket Strainer w/FPM o-rings; threaded end connections" |
| DB1250S | 2-1/2" PVC Duplex Basket Strainer w/FPM o-rings; socket end connections" |
| DB1250F | 2-1/2" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DB1300T | 3" PVC Duplex Basket Strainer w/FPM o-rings; threaded end connections" |
| DB1300S | 3" PVC Duplex Basket Strainer w/FPM o-rings; socket end connections" |
| DB1300F | 3" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DB1400T | 4" PVC Duplex Basket Strainer w/FPM o-rings; threaded end connections" |
| DB1400S | 4" PVC Duplex Basket Strainer w/FPM o-rings; socket end connections" |
| DB1400F | 4" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DB1600FT | 6" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| DB1800FT | 8" PVC Duplex Basket Strainer w/FPM o-rings; flanged end connections" |
| Code | NPT, Socket and ANSI Flanged (EPDM) Table D/E Flange codes T.B.A. |
| DB1050STE | 1/2" PVC Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DB1050FE | 1/2" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DB1075STE | 3/4" PVC Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DB1075FE | 3/4" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DB1100STE | 1" PVC Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DB1100FE | 1" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DB1125STE | 1-1/4" PVC Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DB1125FE | 1-1/4" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DB1150STE | 1-1/2" PVC Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DB1150FE | 1-1/2" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DB1200STE | 2" PVC Duplex Basket Strainer w/EPDM o-rings; socket/threaded end connections" |
| DB1200FE | 2" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DB1250TE | 2-1/2" PVC Duplex Basket Strainer w/EPDM o-rings; threaded end connections" |
| DB1250SE | 2-1/2" PVC Duplex Basket Strainer w/EPDM o-rings; socket end connections" |
| DB1250FE | 2-1/2" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DB1300TE | 3" PVC Duplex Basket Strainer w/EPDM o-rings; threaded end connections" |
| DB1300SE | 3" PVC Duplex Basket Strainer w/EPDM o-rings; socket end connections" |
| DB1300FE | 3" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DB1400TE | 4" PVC Duplex Basket Strainer w/EPDM o-rings; threaded end connections" |
| DB1400SE | 4" PVC Duplex Basket Strainer w/EPDM o-rings; socket end connections" |
| DB1400FE | 4" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DB1600FTE | 6" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| DB1800FTE | 8" PVC Duplex Basket Strainer w/EPDM o-rings; flanged end connections" |
| Connection | Velocity | Approx Flow Rate lt/hr | |
| DN15 | 1/2" | 5 feet/sec | 870 |
| DN20 | 3/4" | 5 feet/sec | 1,580 |
| DN25 | 1" | 5 feet/sec | 2,600 |
| DN32 | 1-1/4" | 5 feet/sec | 4,325 |
| DN40 | 1-1/2" | 5 feet/sec | 6,320 |
| DN50 | 2" | 5 feet/sec | 10,560 |
| DN65 | 2-1/2" | 5 feet/sec | 15,100 |
| DN80 | 3" | 5 feet/sec | 23,050 |
| DN100 | 4" | 5 feet/sec | 40,850 |
Body/Basket Sizes
The Hayward SB Strainer is based on 4 standard physical body and basket sizes.
- Body size 1 can be fitted with 1/2", 3/4" or 1" connections.
- Body size 2 can be fitted with 1-1/4", 1-1/2" or 2" connections.
- Body size 4 can be fitted with 2-1/2", 3" or 4" connections.
- Body size 6 can be fitted with 6" or 8" connections.
Maximum Flow Rate
The maximum recommended fluid velocity through this Hayward Product is five feet per second (5 ft/s), relative to the connection size fitted. Higher fluid velocity can result in damage due to the water hammer effect.
Operating Temperature vs Pressure Chart
The effect of temperature on plastic piping systems must be considered when the systems are initially designed. The pressure rating of plastic systems must be reduced with increasing temperature.
Maximum operating pressure is dependent upon material selection as well as operating temperature.
Before installing any product, consult the product literature for Pressure vs. Temperature curves to determine any operating pressure or temperature limitations.
Basket Options
PVC Baskets
Size
Description
1/32"
All PVC
1/16"
All PVC
1/8"
All PVC
3/16"
All PVC
316 Perforated
Size
Description
0.8mm
Perforated
1mm
Perforated
1.5mm
Perforated
2mm
Perforated
3mm
Perforated
4mm
Perforated
5mm
Perforated
316 Mesh Lined
Size
Description
530 μm
Per/Mesh Lined
415 μm
Per/Mesh Lined
310 μm
Per/Mesh Lined
260 μm
Per/Mesh Lined
190 μm
Per/Mesh Lined
150 μm
Per/Mesh Lined
100 μm
Per/Mesh Lined
