Sediment Pleated Cartridge (4.5") DOE

Series:

CSP Series

Application:

Liquid Filtration

Lengths:

10" and 20"

Connections:

DOE - Double Open End

The 4.5" DOE Sediment Pleated Cartridge is designed to deliver high flow rates with minimal pressure drop while maintaining consistent, high-quality filtration. It uses a durable, reusable polyester pleated media supported by a polypropylene core, providing strength and reliable performance in everyday filtration systems.

Its pleated construction offers excellent sediment-loading capacity, and in many applications the cartridge can be rinsed and reused, extending service life and reducing replacement costs. Ideal for low-pressure sediment removal, this cartridge is well suited to domestic, rural, commercial, and light industrial use.

Specifications

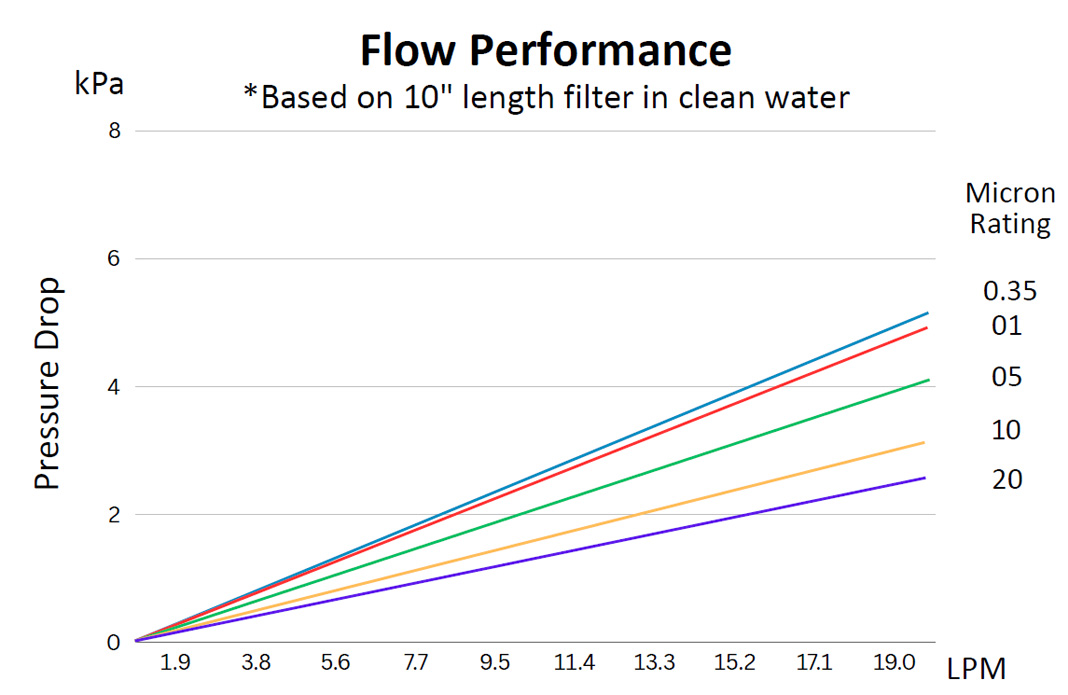

Flow Chart
Ordering Information

Micron Removal Sizes:

0.35, 1, 5, 10 and 20 micron

Cartridge Lengths:

10" (250mm)
20" (508mm)

Recommended Change Out:

69 kPa (10 psi)

Outside Diameter:

114mm (4-1/2")

Inside Diameter:

28mm (1-1/8")

Max. Operating Temperature:

4.4°C - 52°C

End Type:

DOE (Double Open End)

Caution:

For drinking water applications, do not use water that is microbiologically unsafe or of unknown quality without prior adequate disinfection.

Removal Size	10" Codes	20" Codes
0.35 Micron	WCSPW10L0.35	WCSPW20L0.35
1 Micron	WCSFW10L01	WCSFW20L01
5 Micron	WCSPW10L05	WCSPW20L05
10 Micron	WCSPW10L10	WCSPW20L10
20 Micron	WCSPW10L20	WCSPW20SL0
	Box QTY: 6 x 10" Cartridges	Box QTY: 6 x 20" Cartridges
