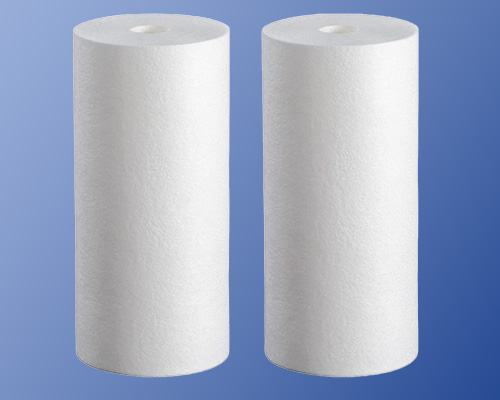

Melt Blown Polypropylene Cartridge Filters 4.5" Diameter

Series:

MBL Series 4.5"

Application:

Liquid Filtration

Lengths:

10" and 20"

Connections:

DOE - Double Open End

The Melt Blown Sediment Removal Filter features advanced dual-gradient depth filtration to maximise dirt-holding capacity while delivering high-quality, cost-effective performance. MBL filters are designed for extended service life, providing excellent value for replacement applications.

Specifications

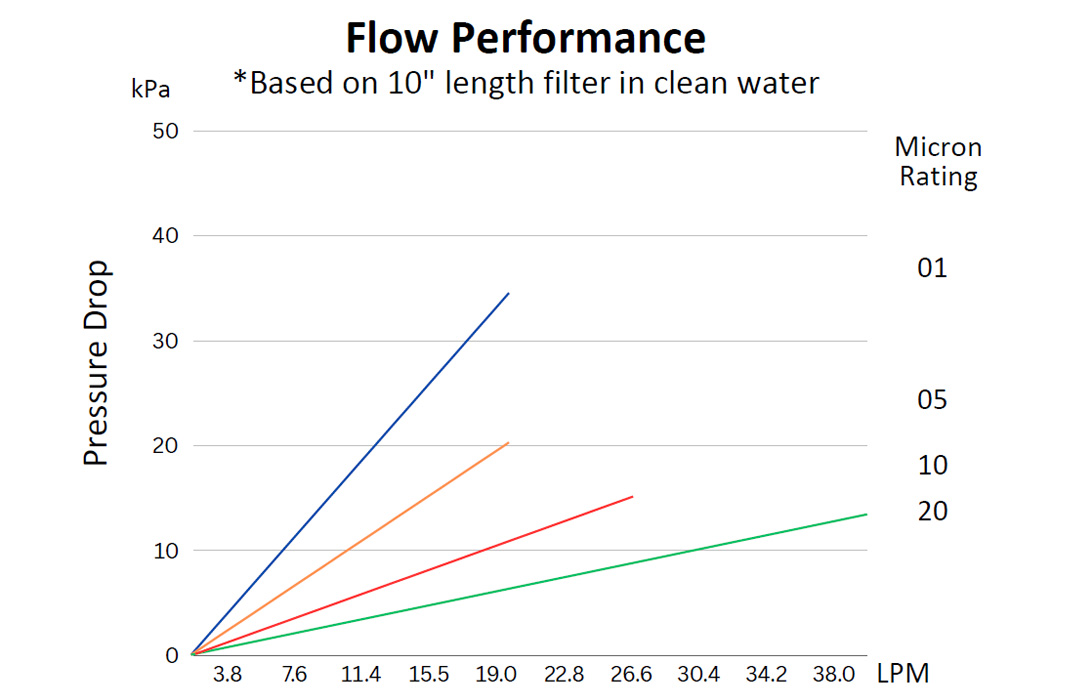

Flow Chart
Ordering Information

Micron Removal Sizes:

0.5, 1, 5, 10 and 25 micron

Cartridge Lengths:

10" (250mm)
20" (508mm)
30" (762mm)
40" (1016mm)

Recommended Change Out:

69 kPa (10 psi)

Outside Diameter:

64mm (2-1/2")

Inside Diameter:

25mm (1")

Max. Operating Temperature:

0.5°C - 52°C

End Type:

DOE (Double Open End)

Caution:

For drinking water applications, do not use water that is microbiologically unsafe or of unknown quality without prior adequate disinfection.

Removal Size	10" Codes	20" Codes
1 Micron	WCMBL10L01	WCMBL20L01
5 Micron	WCMBL10L05	WCMBL20L05
10 Micron	WCMBL10L10	WCMBL20L10
20 Micron	WCMBL10L20	WCMBL20L20
	Box QTY: 18 x 10" Cartridges	Box QTY: 9 x 20" Cartridges
