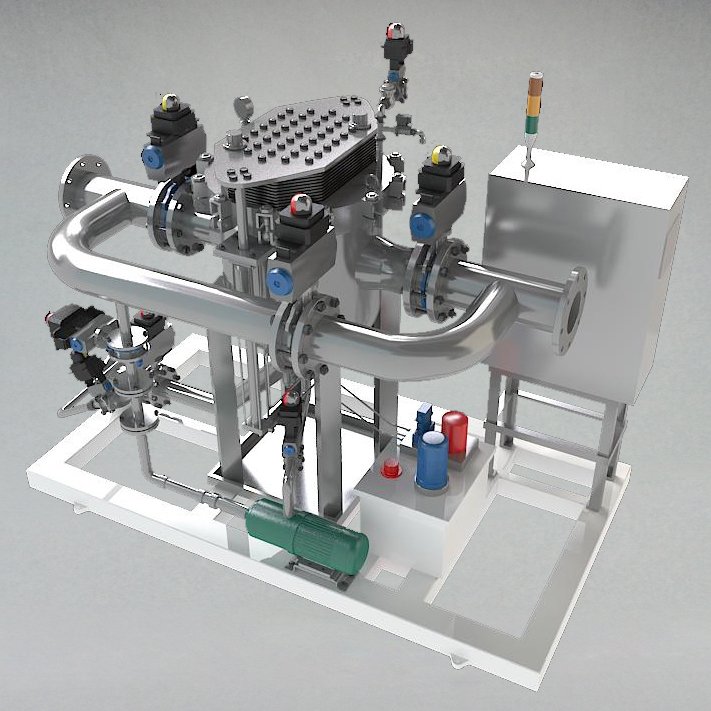

FerroClean I - Permanent Magnetic Filter
Features an automatic magnetic separation system which can continually filter, backwash and expel impurities from various fluids and slurries which contain ferromagnetic impurities.
- Large flow processing capacity suitable for filtering impurities with a high percentage of impurities
- Automatic filtering and separating of magnetic particles
- Automatic flushing off to ensure removal of impurities
- Automatic exhausting and liquid level control system
- Suitable for on-line continuous processes
- Supporting on-site adjustment of control parameters
- Smooth operation by accurate hydraulic system control
- Audible and visual alarm system
Filtration Accuracy: 0.001 to 2mm
Magnetic Density: 12,000Gs
| M4014-60 | M5030-120 | M6037-220 | M7046-300 | M8074-400 | |
| Flow Rate (m³/h) | 60 - 80 | 100 - 150 | 200 - 250 | 300 - 350 | 400 - 450 |
| Design Pressure (Bar) | 10 | 10 | 10 | 10 | 10 |
| Design Temp (℃) | 80 | 80 | 80 | 80 | 80 |
| Filter Rate (mm) | 0.001 - 2 | 0.001 - 2 | 0.001 - 2 | 0.001 - 2 | 0.001 - 2 |
| Magnetic Density (Gs) | 12000 | 12000 | 12000 | 12000 | 12000 |
| Power (KW) | 2.2 | 2.6 | 2.6 | 2.6 | 2.6 |
| Air Pressure (Bar) | 5 | 5 | 5 | 5 | 5 |
| Empty Weight (kg) | 700 | 1000 | 1200 | 1300 | 1400 |
Quote Request
Please send full application details and requirements to sales@monarchindustrial.com.au
