PVC Bag Filter 01 - Hayward Flow Control
The FLV Series Bag Filter Vessels are available in durable PVC and CPVC construction, engineered with a true-union design. End connection options include socket, threaded, or flanged styles, with metric (DIN/EN) connections also offered. These vessels are especially well-suited for demanding applications such as sodium hypochlorite and bleach processing, thanks to their excellent chemical resistance.
Each unit comes standard with FPM seals, with EPDM available as an option. The vessels are pressure rated to 150 psi at 70°F non-shock. Offered in both Size 1 and Size 2 configurations, the FLV Series is available as single (Simplex), dual (Duplex), or triple (Triplex) assemblies, providing flexible solutions for a wide range of liquid filtration requirements.
Monarch Group - Australia and Thailand, are Authorised Distributors/Agents for Hayward Flow Control.

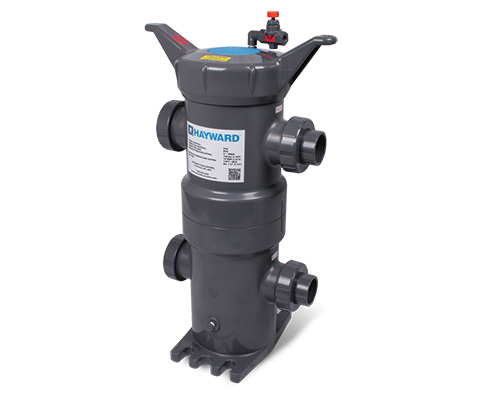

Hayward Flow Control FLT Bag Filter Housing – PVC Construction
The Hayward FLT Series Bag Filter Housing in PVC is a reliable and economical solution for liquid filtration across a wide range of industrial applications. Engineered for strength, durability, and chemical resistance, this housing is designed to handle demanding processes while maintaining ease of operation and low maintenance requirements.
Constructed from high-grade PVC, the FLT housing offers excellent resistance to corrosive chemicals such as sodium hypochlorite, bleach, and other aggressive liquids, making it a preferred choice in chemical processing, water treatment, and general industrial filtration systems.
- Durable PVC Construction – Provides exceptional corrosion resistance for long service life, even in harsh environments.
- True-Union Connections – Available in socket, threaded, or flanged end connections for installation flexibility.
- Pressure Rated – Designed for 150 psi (10 bar) at 70°F non-shock service.
- Seal Options – Supplied standard with FPM (Viton®) seals, with EPDM available as an option to suit various chemical compatibilities.
- Versatile Configurations – Available in Size 01 and Size 02 housings, as well as Simplex, Duplex, or Triplex assemblies for higher flow requirements.
- High Flow Capacity – Supports flow rates up to 100 GPM (depending on size and application).
- Easy Maintenance – One-piece construction and simple bag change-out reduce downtime and operating costs.
- Metric Connections Available – DIN/EN standard end connections available for international installations.
- Chemical Compatibility – Resistant to a wide range of corrosive and abrasive fluids, reducing the risk of equipment failure.
- Cost-Effective Operation – Economical alternative to metal housings without compromising performance.
- Adaptable System Design – Multiple sizes and configurations make it suitable for both small and large-scale filtration setups.
- Improved Safety – Non-metallic construction reduces operator exposure to corrosion by-products and ensures leak-tight operation.
- Reduced Downtime – Quick and easy filter bag replacement improves process efficiency and keeps systems running smoothly.
The maximum recommended fluid velocity through this product is eight feet per second (8 ft/s). Higher fluid velocity can create excess water hammer effect, resulting in property damage, personal injury, or even death. Please refer to I.O.M.
| Connection | Velocity | Approx Flow Rate lt/hr | |
| DN32 | 1-1/4" | 8 feet/sec | 6,900 |
| DN40 | 1-1/2" | 8 feet/sec | 10,110 |
| DN50 | 2" | 8 feet/sec | 16,830 |
Velocity in Schedule 80 Plastic Pipe for Water - Safe Flow Velocity
Hayward establishes a generally accepted safe flow velocity for plastic piping systems. For systems without fast opening or closing valves, a maximum velocity of 8 feet per second is recommended. However, for systems equipped with such valves (like solenoid or pneumatically actuated valves lacking speed controls), the maximum velocity is typically limited to 5 feet per second. In contrast, metal piping systems are often designed to accommodate flow rates of up to 15 feet per second, significantly higher than those acceptable for plastic systems. This distinction is crucial when considering the installation of plastic components such as valves, strainers, or filters within a metal system.
