Inline Conical Strainers and Filters for LNG Compressor Station Protection

Monarch manufactures large diameter inline conical strainers and filters for critical service applications where pipeline equipment must be protected during commissioning, start-up, maintenance, and ongoing plant operation. One important application is the protection of liquid natural gas compressor stations, where reliable removal of debris and pipeline contaminants is essential to safeguarding high-value equipment and maintaining system performance.

In LNG and associated cryogenic or hydrocarbon processing systems, compressor stations, pumps, metering equipment, valves, seals, instrumentation, and other downstream components can be highly sensitive to contamination. During new plant construction, shutdown works, tie-ins, upgrades, or recommissioning, foreign material can remain in the line or be introduced into the system. This material may include weld slag, scale, rust, pipe mill debris, gasket fragments, construction residue, coating particles, and other solid contaminants. If not removed before reaching critical equipment, these particles can cause erosion, blockage, damage to valve seats, premature wear, reduced efficiency, and costly unplanned downtime.

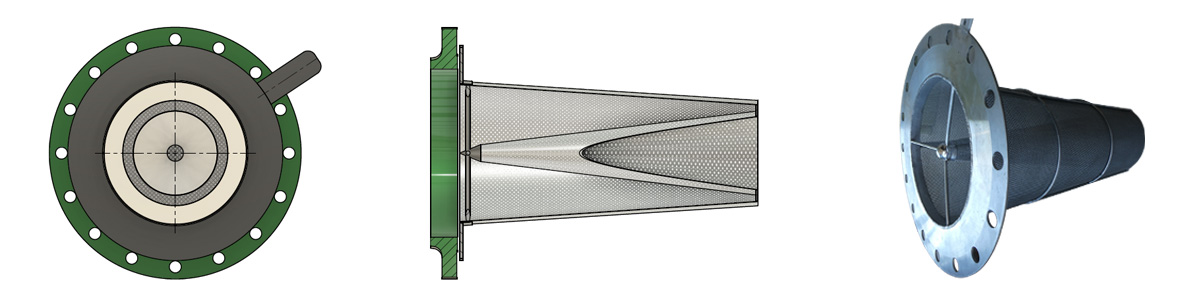

Monarch inline conical strainers are designed to provide an effective and economical method of temporary or semi-permanent protection in these demanding services. Installed directly within the pipeline, the conical strainer creates a compact filtration barrier with a large available screening area relative to the pipe bore. This allows solid contamination to be captured while maintaining the flow path required for plant flushing, testing, commissioning, or operational service. The conical design is particularly well suited to large diameter pipelines, where strength, flow performance, and ease of installation are all important considerations.

For LNG compressor station applications, each strainer is designed to suit the line size, pressure class, flow rate, contamination load, and required level of particle removal. Monarch can manufacture units to suit a wide range of pipeline diameters, including large bore systems where both mechanical integrity and open area are critical to successful operation. Depending on the duty, strainers can be produced in perforated plate, woven wire mesh, wedge wire, or combination construction, allowing the unit to be tailored to the expected debris size and required retention performance. Reinforced designs can also be provided where higher differential pressure resistance or greater structural rigidity is required.

A key advantage of Monarch’s large diameter conical strainers is the ability to customise the design for the specific operating conditions of the compressor station. In LNG and gas processing environments, no two services are exactly the same. Factors such as start-up contamination levels, line velocity, allowable pressure loss, maintenance access, flange arrangement, and temperature conditions all influence the final design. Monarch works closely with clients, engineers, and project teams to ensure the strainer configuration is appropriate for both process performance and mechanical service conditions. This may include consideration of cone length, screen area, open area ratio, support rings, lifting points, reinforcement, flow direction, and special materials of construction.

For applications involving high flow rates through large pipelines, the available free area of the strainer is especially important. A properly designed conical strainer should provide sufficient open area to minimise pressure drop while still achieving the necessary debris retention. Monarch places strong emphasis on correct screen sizing and open area ratio to reduce the risk of premature blockage and to help maintain reliable commissioning or operating performance. Where contamination levels are expected to be heavy, designs can be developed to maximise dirt-holding capacity and extend service intervals before inspection or cleaning is required.

Material selection is another important consideration in LNG compressor station service. Monarch can manufacture strainers in stainless steel, carbon steel, and other suitable alloys depending on the application requirements, corrosion considerations, temperature exposure, and project specifications. Units can be produced to suit standard flange configurations and pipeline arrangements, with designs tailored for installation between mating flanges or within dedicated spool sections where required. Fabrication quality, dimensional accuracy, and structural integrity are all essential, particularly for large diameter units where installation and removal may involve significant handling requirements.

In compressor station protection duties, conical strainers are commonly used during pre-commissioning and start-up to capture construction debris before it reaches compressors and other critical equipment. They may also be specified for temporary service during system flushing or testing, allowing pipelines to be cleaned progressively while protecting downstream assets. In some cases, they are used as part of a broader filtration and mechanical protection strategy where equipment reliability is essential and the cost of contamination is high. Their relatively simple and robust design makes them well suited to remote sites and demanding industrial environments where dependable performance is required.

Monarch understands that projects in the LNG, gas, energy, and process industries often require more than a standard off-the-shelf strainer. Our strength lies in manufacturing custom inline conical strainers and filters to meet the practical demands of the application. Whether the requirement is for a large diameter commissioning strainer, a heavy-duty reinforced cone for high flow service, or a specialised filtration element designed around client specifications, our team can assist with design, manufacture, and supply from our Brisbane engineering workshop.

With experience in custom filter screens, perforated and mesh fabrication, and industrial strainer manufacture, Monarch can provide practical solutions for infrastructure projects where equipment protection, reliability, and fit-for-purpose design are essential. Our large diameter inline conical strainers for LNG compressor station applications are built to help reduce risk during commissioning and operation, protect expensive downstream equipment, and support the long-term performance of critical process systems.

Typical Design Considerations:

• Line size and flange rating
• Allowable pressure loss
• Expected debris load
• Temporary vs permanent duty
• Perforated plate, mesh, wedge wire, or combination screen
• Reinforcement requirements
• Material selection (304, 316, 2205 etc)

Why Monarch Industrial Products:

• Designed and manufactured in Australia
• Custom large-diameter capability
• Local engineering support
• Fast response for project work
• Backed by our Brisbane General Engineering Workshop
