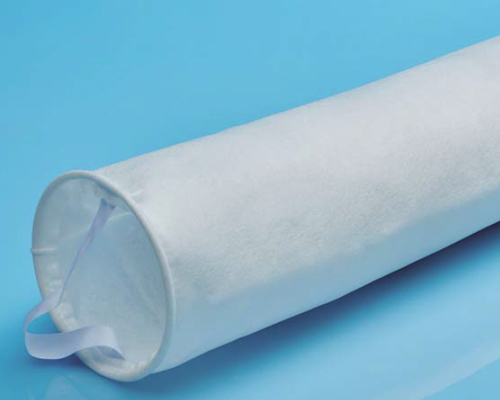

Meta-Aramid Filter Bags

Series:

Standard NT

Application:

Liquid Filtration

Materials:

Meta-Aramid needle felt

Bag Size:

01, 02, 03 and 04

Snap Ring Seals

Meta-Aramid needle felt sewn filter bags offer economic performance with a broad flexibility of construction, while using classic stitching techniques. The downstream side is singed using a special heat process to eliminate fibre migration.

Order Information
Technical
Applications
Downloads

Material:

NT - Meta-Aramid

Micron Rating:

1, 5, 10 and 25 micron

Cover Layer:

P - No Cover

Size:

01 - Ø178mm x 420mm
02 - Ø178mm x 810mm
03 - Ø102mm x 230mm
04 - Ø102mm x 410mm

Seal Ring

S - Snap Ring (316 Stainless Steel)

Retention Type

Nominal

Code Example:

NT-1-PO2S (Snap Ring)

Filter Area:

01 Size - 0.24 m²
02 Size - 0.48 m²
03 Size - 0.08 m²
04 Size - 0.16 m²

Max. Differential Pressure:

2.5 bar (36 psi)

Recommended Change Out:

≈ 0.8 to 1.5 bar (11 to 22 psi)

Max. Operating Temperature:

NT - <205°C

Max. Flow Rates:

01 Size - 20 m³/h
02 Size - 40 m³/h
03 Size - 6 m³/h
04 Size - 12 m³/h
For fluids with a dynamic viscosity of 1 mPa∙s @ 20 °C

Features and benefits:

Material is free from craterforming substances (such as silicones etc.)
Downstream side is singed using a special heat process to eliminate fiber migration
Food grade models are available

Automotive coating systems
Electrophoretic paint and plating
Lubricating or hydraulic oils
Chemicals
Inks
Edible oils and juices
Solvents
Water and many more

Brochure and Datasheet Downloads

Snap Ring Seal Sewn Filter Bags
