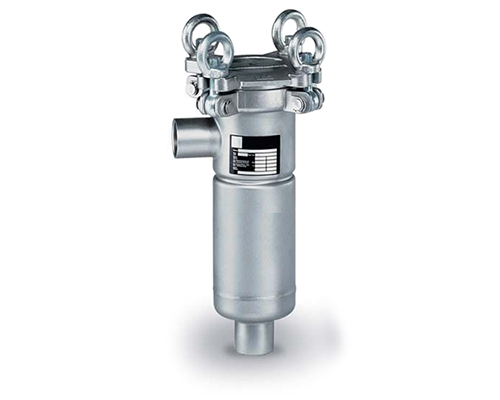

SBF (Mini) Bag Filter Housing

Model:

SBF Bag Filter (SBF Miniline)

Application:

Liquid Filtration

Media:

Nominal, NMO & S/Steel Baskets

Bag Size 03:

6 m³/hr, depending on element and fluid viscosity

Bag Size 04:

12 m³/hr, depending on element and fluid viscosity

Manufacturing

ASME, In accordance to ISO 9001 Quality Management System

With 1-1/2" threaded connections, SBF MINILINE vessels are designed for self-supported installation. Stainless steel construction means years of reliable, precision filtration with no concern about corrosion problems and at a price that compares favorably to carbon steel.

Specifications
Features
Standard Units
Downloads
Quote Request
Related Products

Material:

304, 304L, 316, 316L

Seals:

Buna-N, EPDM, Silicone, Viton, Teflon, Teflon Encapsulated Viton Rubber, Teflon Encapsulated Silicone, Neoprene, Butyl Rubber

Connections:

BSP, NPT, DIN, ANSI

Sizes:

DN40 (1-1/2")

Pressure:

10 & 16 bar

Eye Bolts:

Zinc Plated (Standard)

Options:

Polished Surfaces
304 S/Steel Eye Bolts
Stainless Fine Mesh Baskets

Features

Side inlet piping connection and evacuation cover, eliminates liquid spill over when cover is opened.
Integrated handle cover, single-handed, user-friendly operation.
Unique basket seal design, Easy Lock ensures no bypass.
Swing eye-bolt closure, guarantees integrity even at high pressures.
Electro-polished stainless steel perforated plate support basket, easy to clean.

Applications

Pulp and Paper
Food and Beverage
Metal Working Fluids
Chemical Processing
Paints, Inks, Resins and Coatings
Automotive
Electronics
Pharmaceutical
Petrochemicals

03 Size Housings (16 bar)

Code: SBF-0103-BB16-040B

03 Size Bag
304 Stainless Steel
16 Bar Pressure
1-1/2" BSP

Code: SBF-0103-AB16-040B

03 Size Bag
316 Stainless Steel
16 Bar Pressure
1-1/2" BSP

04 Size Housings (16 bar)

Code: SBF-0104-BB16-040B

04 Size Bag
304 Stainless Steel
16 Bar Pressure
1-1/2" BSP

Code: SBF-0104-AB16-040B

04 Size Bag
316 Stainless Steel
16 Bar Pressure
1-1/2" BSP

04 Size Housings (10 bar)

Code: ECS-0104-BB10-040B

04 Size Bag
304 Stainless Steel
10 Bar Pressure
1-1/2" BSP

Code: ECS-0104-AB10-040B

04 Size Bag
316 Stainless Steel
10 Bar Pressure
1-1/2" BSP

Example Datasheet (304)

SBF 03 & 04 in (304, 16 bar) 1-1/2"

ECS 03 in (304, 16 bar) 1-1/2"

ECS 04 in (304, 16 bar) 1-1/2"

Example Datasheet (316)

SBF 03 & 04 in (316, 16 bar) 1-1/2"

ECS 03 in (316, 16 bar) 1-1/2"

ECS 04 in (316, 16 bar) 1-1/2"

To assist us in providing a quotation or recommendation, please provide as much detail of your application as possible.

Contact Information

Please provide detailed contact information.

Special Requirements

Please provide details of any special requirements, lead times, certification or documentation etc.

Application

Liquid Type
Flow rate
Viscosity
System Pressure
Temperature
Micron Removal Size
Solids Loading
Particle Type (hard, soft, sticky, fibrous)

Equipment Details

Material
Connection Type
Connection Size
Seal Type

Filter Media

Accessories

Fine Mesh Baskets
