Multi Bag Filter Housing for liquid filtration

MBF Multi Bag Filter Housing

Model:

MBF

Application:

Liquid Filtration

Media:

Nominal, NMO & Absolute Bags & Cartridges

Bag Size 01:

20 m³/hr, depending on element and fluid viscosity
multiplied by the number of bag filter chambers

Bag Size 02:

40 m³/hr, depending on element and fluid viscosity
multiplied by the number of bag filter chambers

Manufacturing

ASME, In accordance to ISO 9001 Quality Management System, "U Stamp" Available

Economical Operating Performance

The BVM multi bag filter housings features side inlet and bottom outlet, providing easy and complete drainage. The convenient tangential bottom outlet reduces housing height, making bag change-out easy and safe. A standard eye-bolt closure is equipped with a spring balanced head lifting system for quick access to the interior. The lid can be easily positioned at any angle by a single person using only one hand. A unique 3-point bag seal clamp assures bypass-free performance under all conditions.

Specifications
Features
Standard Units
Downloads
Quote Request
Related Products

Material:

304, 304L, 316, 316L

Seals:

Buna-N, EPDM, Silicone, Viton, Teflon, Teflon Encapsulated Viton Rubber, Teflon Encapsulated Silicone, Neoprene, Butyl Rubber

Connections:

DIN, ANSI, Table

Pressure:

10 bar (145 psi) @ 150°C
(higher pressure options available)

Bag Sizes:

01 and 02
(01 in 3 & 4 bag units only)

Flow Rates:

Up to 920 m³/h

Options:

U Stamp Certification
Polished Surfaces
Stainless Fine Mesh Baskets
Connection orientation
Hinge position

Features

Side inlet and bottom outlet for easy and complete drainage.
Tangential bottom outlet and spring-balance head lifting system making bag change-out easy and safe.
Self-balancing locking mechanism for fast and easy operation.
Single-handed, user-friendly operation, ideal for high-volume applications.
Exclusive 3-point bag seal clamp assures bypass-free performance under any conditions.
Easy to operate, economical and practical.

Applications

Pulp and Paper
Food and Beverage
Metal Working Fluids
Chemical Processing
Paints, Inks, Resins and Coatings
Automotive
Electronics
Pharmaceutical
Petrochemicals

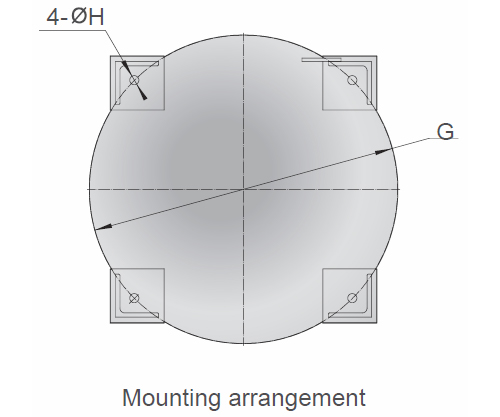

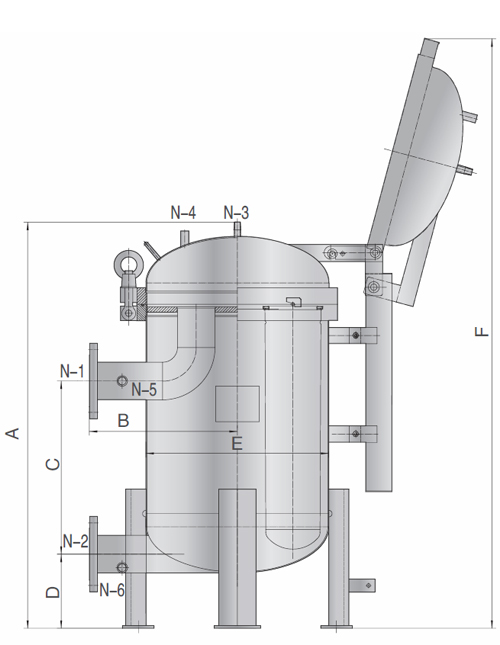

mm	3 bags	4 bags	6 bags	8 bags
A	1244	1252	1335	1315
B	400	450	520	600
C	520	527	450	528
D	250	225	300	200
E	500	550	600	750
F	1750	1720	1928	2035
G	475	525	580	735
N1	DN80	DN100	DN150	DN150
N2	DN80	DN100	DN150	DN150
H	Ø18	Ø18	Ø18	Ø18

mm	12 bags	17 bags	23 bags
A	1458	1467	1553
B	680	750	820
C	528	450	535
D	220	250	250
E	950	1050	1200
F	2316	2479	2692
G	930	1040	1195
N1	DN200	DN250	DN250
N2	DN200	DN250	DN250
H	Ø24	Ø24	Ø24
