Monarch Industrial Products Filters and Strainers

Bag Filter Housings for Liquid Applications

Bag filters are economical to operate and are extensively used for a wide range of industrial liquid filtration applications. We have been specialist suppliers of bag Filter Systems for over 20 years. We offer four Industry Standard sizes of bag filter housings - Size 01, 02, 03 and 04. A Bag Filter System is a highly adaptable to virtually any liquid and viscosity. The liquid flows through the inside to the outside of the bag trapping the particles. Bag Filter Vessels are available in Single or Multi Bag units. Multi Bag units offer large surface area and high flow rates. The filter bags have a comparable long life and require little maintenance when sized correctly.

Multi-bag Housings in 01 and 02 size offer user friendly, cost effective bag filtration for high volume applications.

Size Flow rate Dimensions Flow Area
01# 20,000 (lt per hour) Ø178mm x 420mm 0.24 m²
02# 40,000 (lt per hour) Ø178mm x 810mm 0.48 m²
03# 6,000 (lt per hour) Ø102mm x 230mm 0.08 m²
04# 12,000 (lt per hour) Ø102mm x 410mm 0.16 m²
TBF Series Topline Single Bag Filter for liquid filtration
Goose Neck or Over-the-top inlet design
Material: 304, 304L, 316, 316L (Titanium and other materials on request)
Pressure: 10 Bar
Connections: BSP, NPT, DIN, ANSI
Sizes: 2"
Bags: 01 and 02 size
Basket Inserts: Custom perforated and fine mesh baskets available

M Series Custom Fabricated Single Bag Filter for liquid filtration
Custom Fabricated Vessels
Material: 304, 304L, 316, 316L (Titanium and other materials on request)
Pressure: 10, 15, 21 Bar
Connections: BSP, NPT, DIN, ANSI
Sizes: Up to 3"
Bags: 01 and 02 size
Basket Inserts: Custom perforated and fine mesh baskets available

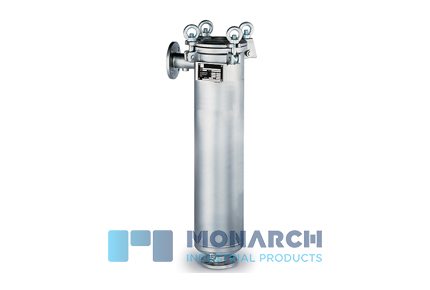

SBF Series Sideline Single Bag Filter for liquid filtration
Side entry inlet, extensively used for industrial applications
Material: 304, 304L, 316, 316L (Titanium and other materials on request)
Pressure: 10 Bar
Connections: BSP, NPT, DIN, ANSI
Sizes: 2" and 3"
Bags: 01 and 02 size
Basket Inserts: Custom perforated and fine mesh baskets available

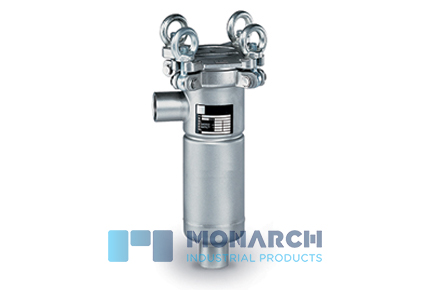

SBF Series Miniline Single Bag Filter for liquid filtration
Side entry inlet, extensively used for industrial applications
Material: 304, 304L, 316, 316L (Titanium and other materials on request)
Pressure: 10, 16 Bar
Connections: BSP, NPT
Sizes: 1-1/2"
Bags: 03 and 04 size
Basket Inserts: Custom perforated and fine mesh baskets available

FBF Series Flowline Single Bag Filter for liquid filtration
A Versatile, Cost Effective Vessel for Industrial Applications
Material: 304, 316
Pressure: 10 Bar
Connections: BSP, NPT, ANSI
Sizes: 2"
Bags: 01 and 02 size
Basket Inserts: Custom perforated and fine mesh baskets available

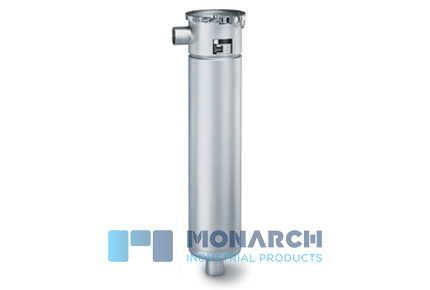

EBF Series Ecoline Single Bag Filter for liquid filtration
Light-weight, low pressure bag filter housing with V Clamp closure
Material: 304, 316
Pressure: 6 Bar
Connections: BSP
Sizes: 2"
Bags: 01 and 02 size
Basket Inserts: Custom perforated and fine mesh baskets available

EBF Series Miniline Single Bag Filter for liquid filtration
Light-weight bag filter housing with V Clamp closure
Material: 304, 316
Pressure: 9 Bar
Connections: BSP
Sizes: 1-1/2"
Bags: 03 and 04 size
Basket Inserts: Custom perforated and fine mesh baskets available

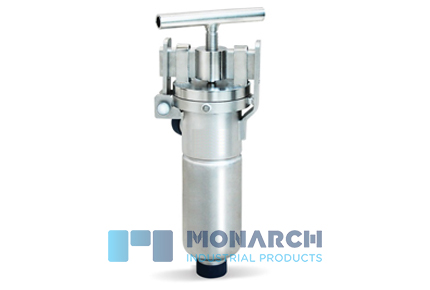

T Handle Miniline Bag Filter Housing
T Handle, Quick Open High Pressure
Material: 304, 304L, 316, 316L (Titanium and other materials on request)
Class: 10, 15, 21 Bar
Connections: BSP, NPT, DIN, ANSI
Sizes: 1-1/2"
Bags: 03 and 04 size
Basket Inserts: Custom perforated and fine mesh baskets available
